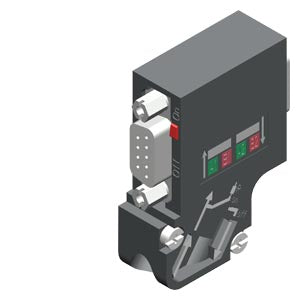

Siemens Connection plug, up to 12 Mbit/s 35° cable outlet

Product Overview

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 35 degree cable outlet, Insulation displacement method FastConnect, With PG receptacle 15.8x 54x 39.5 mm (BxHxD). This industrial communication connector provides reliable PROFIBUS connectivity for SIMATIC DP systems with optimized 35-degree cable routing and integrated programming port for field maintenance and diagnostics.

Key Features

Connector Design:

• PROFIBUS DP connection plug with 35° cable outlet
• FastConnect insulation displacement technology
• Integrated PG (Programming) receptacle for field access
• Compact industrial design for optimized cable routing
• Robust construction for harsh industrial environments

Communication Specifications:

• Data transfer rate up to 12 Mbit/s
• RS485 communication interface
• PROFIBUS DP protocol support
• 35° cable outlet for optimal cable management
• FastConnect connection system for quick installation

Performance Specifications:

• Data Rate: Up to 12 Mbit/s PROFIBUS communication
• Cable Outlet: 35° angle for optimized cable routing
• Connection Method: Insulation displacement FastConnect
• PG Socket: Integrated programming port

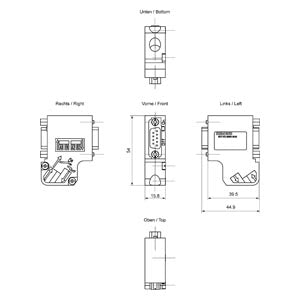

• Dimensions: 15.8 x 54 x 39.5 mm (W x H x D)

Technical Specifications

Physical Characteristics:

• Net Weight: 0.050 kg
• Dimensions: 15.8 x 54 x 39.5 mm (W x H x D)
• Packaging Dimensions: 6.80 x 7.80 x 3.20 cm
• Cable Outlet: 35° angled for optimal cable management
• Material: Industrial-grade plastic housing

Electrical Properties:

• Communication Protocol: PROFIBUS DP
• Interface: RS485
• Data Rate: Up to 12 Mbit/s
• Connection Technology: FastConnect insulation displacement
• Programming Port: Integrated PG receptacle

Standards and Compliance:

• RoHS Compliance: Yes, since 02.02.2016
• WEEE Take-Back Obligation: Yes, covered under WEEE (2012/19/EU)
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany
• Protection Rating: IP20 when mounted

Product Information:

• EAN: 4047623406884
• UPC: 804766281426
• Packaging: 1 piece per package
• Product Class: Standard product (returnable)

Applications

The PROFIBUS connector is designed for industrial automation networks requiring reliable communication in SIMATIC DP systems. Ideal for distributed I/O systems, process automation, factory automation, drive systems, and field device connections where 35° cable routing provides optimal cable management with integrated programming access for maintenance and diagnostics.

Operation

The connector provides PROFIBUS DP communication using FastConnect insulation displacement technology, eliminating the need for cable stripping and reducing installation time. The 35° cable outlet allows optimal cable routing and management while maintaining signal integrity. The integrated PG receptacle enables direct connection of programming devices for system diagnostics, parameter setting, and maintenance without disconnecting the main communication cable.

Compatibility

System Integration:

• SIMATIC DP: Full compatibility with SIMATIC DP networks
• PROFIBUS: Standard PROFIBUS DP protocol support
• Programming Tools: Direct access via integrated PG socket
• Field Devices: Connection of distributed I/O and field devices

Installation Benefits:

• FastConnect Technology: Quick and reliable cable connection
• 35° Cable Outlet: Optimized cable routing and management
• PG Receptacle: Integrated programming port for field access
• Maintenance Access: Service and diagnostics without cable disconnection

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing the following substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead: Present in electronic components
• Lead monoxide (lead oxide): Present in electronic components

Based on current information, these substances do not pose risk when used as intended, including proper disposal.

Download existing graphical data for this product:

• Product Datasheet (PDF)
• Product Page - Siemens Industry Mall
• Technical Documentation - Siemens Support
• RS485 Bus Connector Documentation
