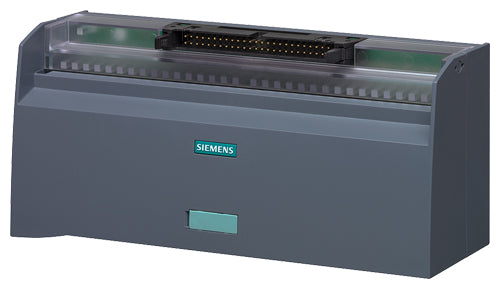

Siemens Connection module TP3, 32 channels, push-in

SKU / Article No. 6ES7924-2CA20-0BC0

Product Type Control Panel

Product Class Sensor/actuator terminal block

R 2,654.86

Out of Stock

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

The Siemens 6ES7924-2CA20-0BC0 is a SIMATIC TOP connect TP3 connection module designed for digital signal interfacing. It provides 32 channels with a 2×33 terminal layout including integrated potential supply, features push-in terminals with LED indicators and IDC-connector for 50-pole cable coupling, enabling efficient wiring and diagnostics in automation systems.

Key Features

Connection module TP3 for SIMATIC digital I/O interfacing
32 channels plus 2×33 terminals for potential supply integration
Push-in terminal technology for fast wiring and secure connections
LED indication per channel for diagnostics and status monitoring
50-pole IDC connector for quick cable plug-in and field wiring
Compact and modular design for space-efficient integration in control cabinets

Technical Specifications

Article Number: 6ES7924-2CA20-0BC0
Product Type: TP3 connection module
Channels: 32 digital signal channels
Terminal Layout: 2×33 terminals for power & signal
Connector: 50-pole IDC cable connector
Wiring Technology: Push-in terminals with LED indicators
Net Weight: approx. 0.34 kg
Country of Origin: Romania
Compliance: RoHS-compliant since 10.01.2014

Compliance & Certifications

Manufactured under Siemens industrial automation standards
Designed for use with SIMATIC S7-300 / S7-1500 digital I/O systems

Applications

Used in industrial automation systems to connect digital sensors and actuators to SIMATIC control systems. Ideal for machine-tool interfaces, distributed control cabinets and system expansions where quick-connect wiring and clear diagnostics are required.
