Siemens

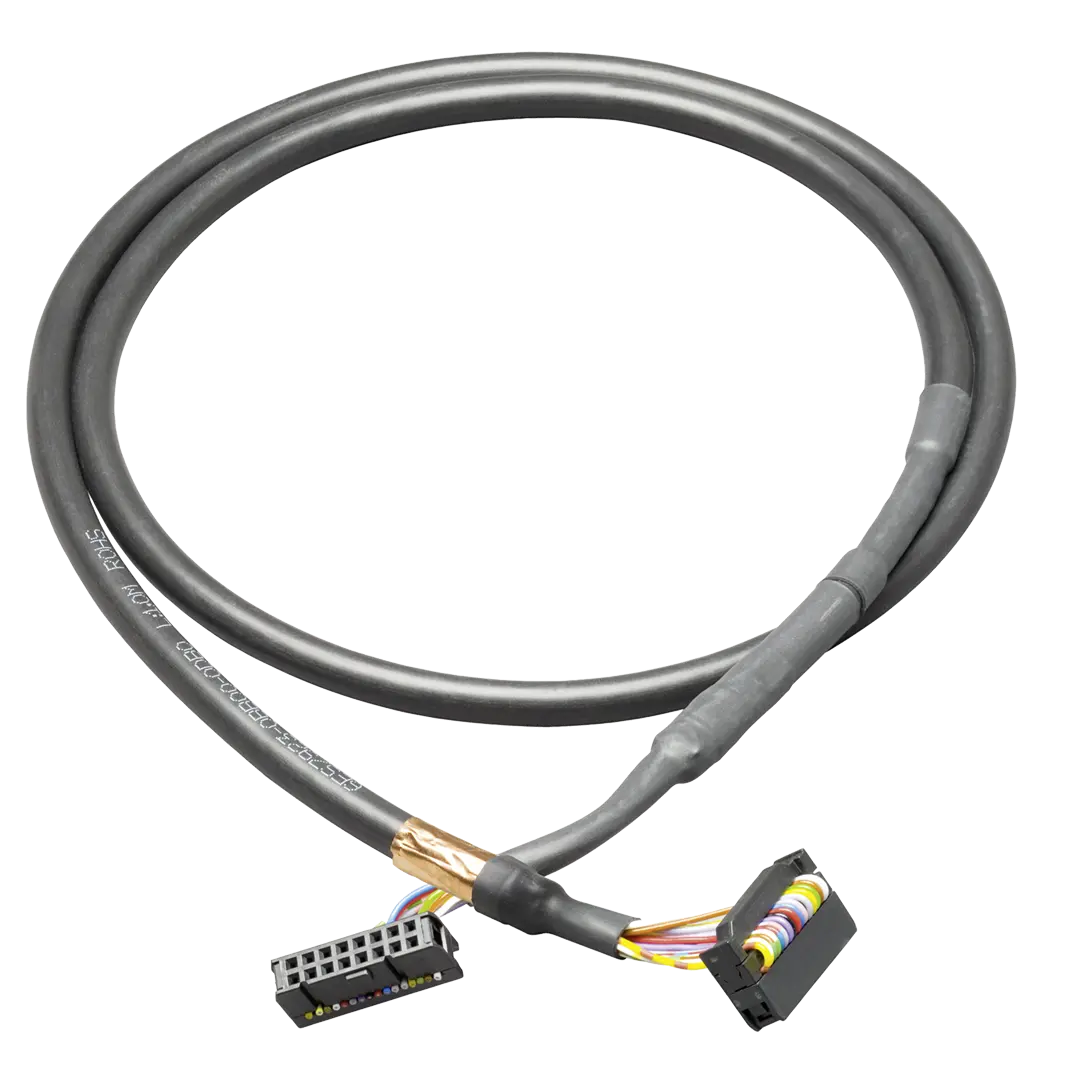

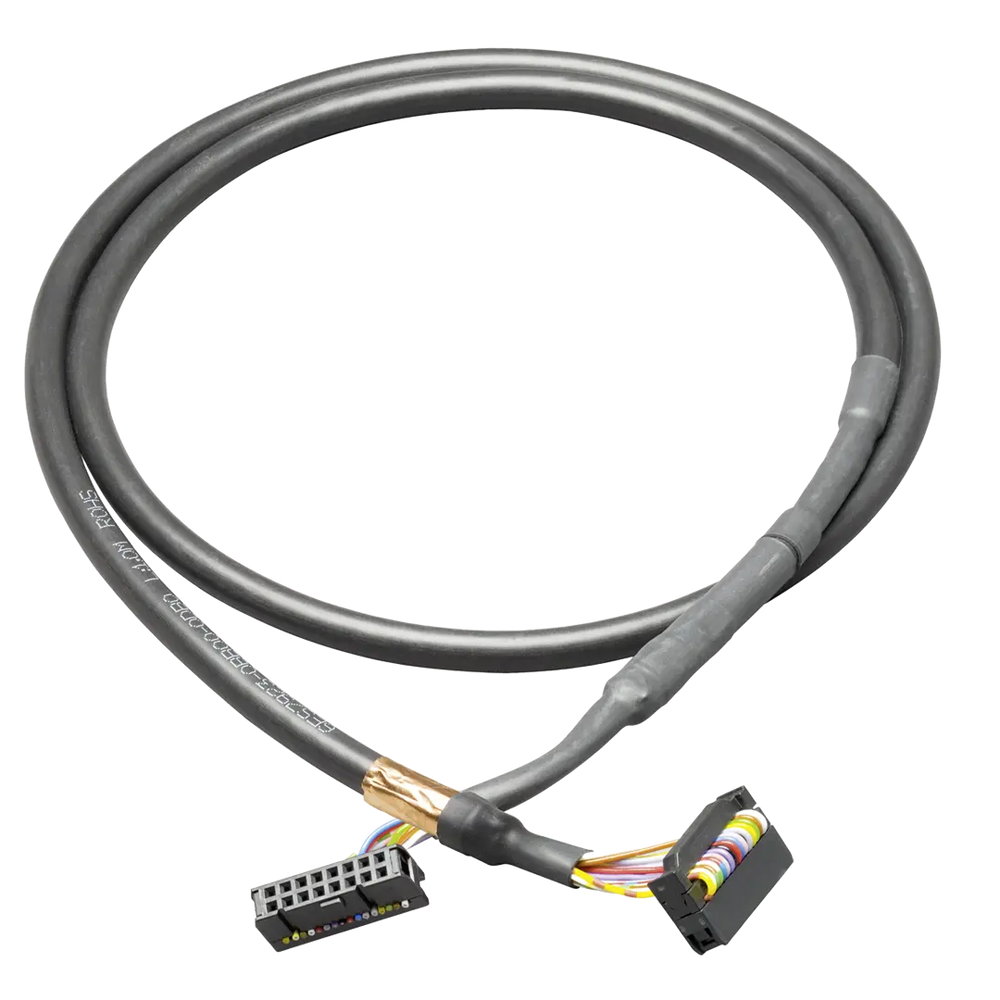

Siemens Connecting cable, shielded, 5m Part number 6ES7923-0BF00-0DB0

EAN / Barcode 4025515142140
Product Type Control Panel
Product Class PLC connection cable
ETIM Class PLC connection cable
Back Order
💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Connecting cable shielded for SIMATIC S7-300/1500 between front connector module and Connection module 16x0.14 mm2 with IDC connectors, Length = 5.0 m The 16-pin round cable (shielded) with a length of 5m represents the link between the front connector and connection module. This pre-assembled cable enables a trouble-free and safe signal flow. Even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable.This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-1500 via cable and front plug-in module.

Technical Specifications

Compliance/StandardsIEC 81346-2
country_of_originGermany
descriptionConnecting cable shielded for SIMATIC S7-300/1500 between front connector module and Connection module 16x0.14 mm2 with IDC connectors, Length = 5.0 m
Length5 m
Number of poles16
Part Depth (mm)6,00mm
Part Height (mm)29,00mm
Part Width (mm)29,00mm
Suitable for analogue signalsYes
Suitable for digital signalsYes
Suitable for input board PLCYes
Suitable for output card PLCYes
Type of electrical connection, box-sidedConnection plug board
Type of electrical connection, field-sidedConnection plug board
Weight (g)0,426 Kg
