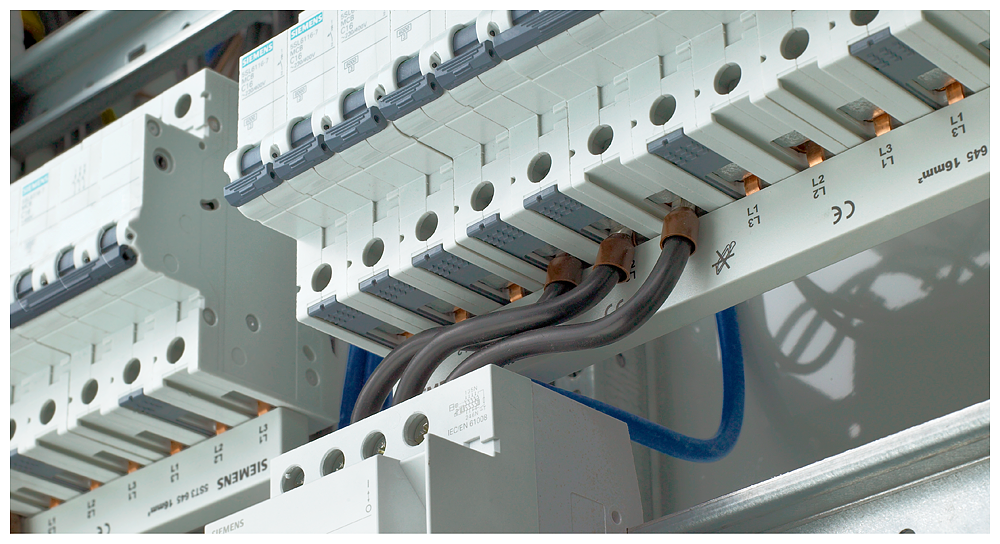

Siemens Circuit breaker, class 2, 1+N-pole, 1MW, 230V, 6kA Part number 5SL6002-7

Product Overview

The Siemens 5SL6002-7 is a SENTRON 5SL60 miniature circuit breaker with a 1P+N pole configuration and a rated current of 2 A. It is designed for reliable protection of low-current circuits against overload and short circuit in residential, commercial and light industrial installations. With a C-curve tripping characteristic and compact modular design, it ensures safe and efficient circuit protection where space-saving and dependable performance are required.

Key Features

• 1 pole + neutral (1P+N) miniature circuit breaker
• Rated current: 2 A
• Tripping characteristic: C-curve (for moderate inrush current applications)
• Rated voltage: 230 V AC
• Rated breaking capacity: 6 kA (according to EN 60898-1)
• Compact 18 mm modular width for space-saving installations
• Halogen-free and sealable design for improved installation safety
• DIN rail mounting (35 mm)

Technical Specifications

• Article Number: 5SL6002-7
• Series: SENTRON 5SL60
• Number of Poles: 1P+N (phase + switched neutral)
• Rated Current: 2 A
• Rated Voltage: 230 V AC / 60 V DC
• Breaking Capacity (Icn): 6 kA
• Tripping Characteristic: C
• Mounting: 35 mm DIN rail
• Module Width: 18 mm
• Installation Depth: approx. 70 mm
• Protection Class: IP20 (with connected conductors)
• Ambient Operating Temperature: –25 °C to +60 °C

Compliance & Certifications

• Manufactured according to IEC / EN 60898-1 standards
• Complies with Siemens SENTRON low-voltage protection requirements
• Suitable for pollution degree 2 and overvoltage category III environments

Applications

This miniature circuit breaker is ideal for protecting low-current control circuits, lighting circuits, automation systems, and sensitive electrical loads in residential, commercial, and light industrial distribution boards where precise and reliable protection is required.
