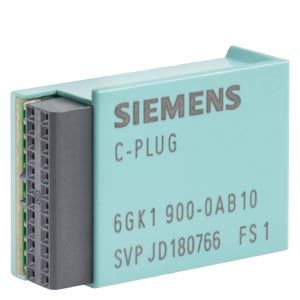

Siemens C-plug, removable data storage medium

Product Overview

C-plug, removable data storage medium for simple device replacement in case of fault, for recording configuration or engineering and application data. This compact storage solution can be used in SIMATIC NET products with C-plug slot including SCALANCE XC-200, XP-200, XM-400, XR-500, M-800, W-700, SC-600 and S615. The C-plug eliminates downtime and complexity during device replacement by providing instant configuration backup and restoration capabilities.

Key Features

Storage and Backup:

• Removable data storage medium with up to 256MB capacity
• Automatic configuration backup for connected devices
• Stores engineering data, application files, and web pages
• Instant data restoration during device replacement
• Plug-and-play operation without specialized technical knowledge

Device Compatibility:

• SCALANCE XC-200: Industrial Ethernet switches
• SCALANCE XP-200: Managed switches with advanced features
• SCALANCE XM-400: Managed modular IE switches
• SCALANCE XR-500: Managed IE switches with routing capabilities
• SCALANCE M-800: High-performance industrial switches
• SCALANCE W-700: Wireless access points and controllers
• SCALANCE SC-600: Security appliances for network protection
• SCALANCE S615: Industrial Ethernet security modules

Construction and Design:

• Form Factor: Compact C-plug design for easy insertion/removal
• Durability: Industrial-grade construction for harsh environments
• Weight: 0.027 kg lightweight design
• Dimensions: 7.80 x 12.60 x 3.30 cm packaging
• Material Compliance: RoHS compliant since 01.07.2006

Technical Specifications

Physical Characteristics:

• Net Weight: 0.027 kg per unit
• Packaging: 1 piece per package
• Packaging Dimensions: 7.80 x 12.60 x 3.30 cm
• Package Size Unit: CM
• Quantity Unit: 1 Piece

Storage Capabilities:

• Storage Capacity: Up to 256MB
• Data Types: Configuration data, engineering parameters, application data
• File Support: Web pages, documents, and system files
• Backup Speed: Instant backup and restoration
• Data Retention: Non-volatile storage for long-term reliability

Standards and Compliance:

• RoHS Compliance: Yes, since 01.07.2006
• WEEE Take-Back Obligation: Yes, covered under WEEE (2012/19/EU)
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany
• Product Class: Standard stock item with return guidelines

Product Information:

• EAN: 4047622564134
• UPC: 804766545832
• Packaging Quantity: 1 unit per package
• Product Group: 2410

Applications

The C-plug is essential for:

• Industrial automation networks requiring device redundancy
• Manufacturing systems with critical uptime requirements
• Process control networks needing rapid fault recovery
• Remote installations where specialized technicians are not available
• Network infrastructures requiring consistent configuration management
• Systems demanding minimal maintenance downtime
• Industrial environments with frequent device replacement needs

Installation Benefits

Simplified Device Replacement:

• No manual reconfiguration required during device replacement
• Eliminates need for specialized networking knowledge
• Reduces replacement time from hours to minutes
• Maintains network consistency across all devices
• Prevents configuration errors during maintenance

Operational Advantages:

• Minimizes production downtime during network maintenance
• Enables field technicians to perform complex device replacements
• Ensures identical configuration across replacement devices
• Protects critical system configuration data
• Reduces total cost of ownership through simplified maintenance

Data Management:

• Centralized storage of device configurations
• Version control for configuration updates
• Backup of custom application data and web interfaces
• Protection against configuration loss during device failure
• Simplified configuration deployment across multiple devices

Compatibility

SIMATIC NET Integration:

• Network Architecture: Fully integrated with SIMATIC NET ecosystem
• Device Support: Compatible with all C-plug equipped SCALANCE products
• Communication Standards: Supports industrial Ethernet protocols
• System Integration: Seamless integration with existing automation systems

Use Cases:

• Manufacturing: Automated production line networking
• Process Control: Chemical and pharmaceutical industry applications
• Power Generation: Utility and power plant automation
• Transportation: Railway and automotive industry networks
• Building Automation: Industrial facility management systems

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead monoxide (lead oxide): Present in electronic components
• 4,4'-isopropylidenediphenol (Bisphenol A, BPA): Present in plastic components

Based on current information, these substances do not pose risk when used as intended, including proper disposal. Regular monitoring ensures compliance with evolving REACH requirements.

Available Configurations

This C-plug model is part of a comprehensive range:

• 6GK1900-0AB10: Standard C-plug (current SKU)
• 6GK1900-0AB00: Alternative configuration for specific applications
• Compatible with all SCALANCE products featuring C-plug slots

Quality Assurance

• Manufacturing Standards: German engineering and quality control
• Testing: Comprehensive factory testing before shipment
• Reliability: Proven performance in industrial environments
• Support: Backed by Siemens global technical support network
• Warranty: Standard product warranty coverage

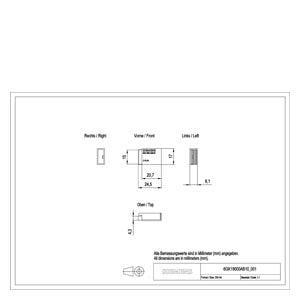

Download existing graphical data for this product:
