Siemens Busbar, fork shape, 55mm modular spacing, 3-phase

Product Overview

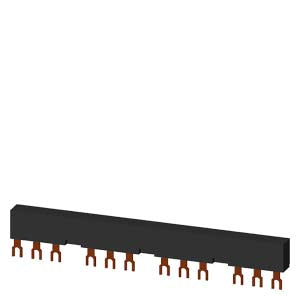

The 3RV1915-2CB is a 3-phase busbar system designed with modular spacing of 55 mm for connecting 4 motor starter protectors with accessories, featuring fork shape connections for reliable power distribution. This insulated busbar accessory provides a comprehensive solution for supplying power to SIRIUS 3RV motor starter protectors equipped with lateral auxiliary switches and other accessories in side-by-side mounting configurations on DIN rails.

Key Features

• Modular Spacing: 55 mm center-to-center spacing for motor starter protectors with accessories
• Capacity: Designed for 4 motor starter protectors (Size S00/S0) with lateral accessories
• Connection Type: Fork shape connections for secure electrical contact
• Accessory Compatibility: Accommodates motor starter protectors with auxiliary switches
• Insulation: Fully insulated 3-phase busbar system with touch protection
• Compatibility: Compatible with 3RV motor starter protectors with screw terminals
• Mounting: DIN rail mounting system
• Material: High-quality busbar material for reliable conductivity
• Safety: Finger-safe shock protection design
• Installation: Tool-free installation and connection
• Rated Current: 63 A at 690 V
• Short-Circuit Resistant: Designed to withstand motor starter protector short-circuit levels
• Weight: 0.110 kg
• Dimensions: Extended design for four-position installations

Technical Specifications

• Voltage Rating: Up to 690 V AC
• Current Rating: 63 A maximum
• Frequency Rating: 50/60 Hz
• Number of Positions: 4 switch positions with accessory accommodation
• Busbar Material: Copper conductor with insulation
• Connection System: Fork-type connections
• Mounting Method: DIN rail compatible
• Operating Temperature: Standard industrial temperature range
• Degree of Protection: Touch-safe design
• Standards Compliance: IEC industrial standards
• Installation Type: Side-by-side motor starter protector mounting with accessories
• Extension Capability: Can be extended with additional busbar sections

Applications

The 3RV1915-2CB is ideal for power distribution in motor control centers, industrial automation panels, and electrical control systems where four motor starter protectors with accessories need to be fed from a common power source. It provides efficient power distribution for motor protection devices equipped with auxiliary switches in applications such as conveyor systems, pump stations, HVAC equipment, manufacturing machinery, and process control installations requiring organized and space-efficient motor starter protector arrangements with enhanced monitoring capabilities.

Operation

The busbar system provides a common power supply to four motor starter protectors through fork-shaped connections that ensure reliable electrical contact. Power is distributed through the insulated copper busbars to each connected motor starter protector position. The 55mm modular spacing allows for motor starter protectors equipped with lateral auxiliary switches and other accessories. Installation involves mounting the busbar on DIN rail and connecting the motor starter protectors to the fork connections, eliminating the need for individual power wiring to each device while accommodating auxiliary equipment.

Product Information

• Net Weight: 0.110 kg
• Packaging Dimensions: 33.00 x 205.00 x 14.00 mm
• EAN: 4011209504691
• UPC: 754554738079
• Country of Origin: Germany
• Product Class: Standard product, stock item

Compliance & Environmental

• RoHS Compliance: Yes (since 01.07.2006)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Regular screening for substances of very high concern
• Export Control: AL: N / ECCN: N
• International Standards: IEC industrial standards for busbar systems

Download existing graphical data for this product:

• Technical Data Sheet
• CAx Data & 3D Models
• Equipment Manual

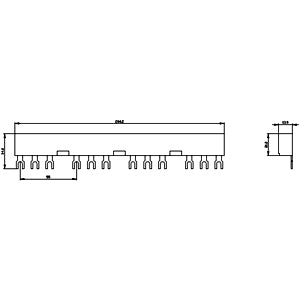

• Dimension Drawings
