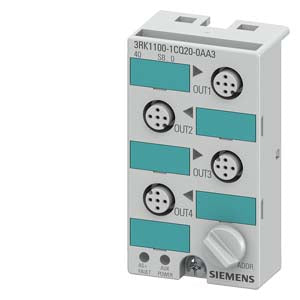

Siemens AS-Interface compact modules, 45 digital 4 DQ
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
AS-Interface mounting plate K45 for compact modules K45 for installation on standard mounting rail for 2 flat cables AS-i cable (yellow) and AS-i cable 24 V (black)
Key Features
- K45 Compact Module Support: Designed specifically for K45 compact modules
- Standard Mounting Rail: Optimized for installation on standard mounting rail
- Dual Cable Support: Accommodates two flat cables - AS-i cable (yellow) and AS-i cable 24 V (black)
- Industrial Grade: Built to withstand demanding industrial environments
- Compact Design: Efficient use of space with minimal footprint
- Easy Installation: Simple mounting on standard DIN rail systems
Technical Specifications
- Product Lifecycle: PM300:Active Product
- Net Weight: 0.035 kg
- Packaging Dimensions: 40.00 x 80.00 x 10.00 mm
- Quantity Unit: 1 piece
- EAN: 4011209449954
- UPC: 754554629582
- Country of Origin: Czech Republic
Compliance & Certifications
- RoHS Compliance: Since: 01.05.2012
- Export Control: AL : N / ECCN : N
- WEEE Compliance: Yes
- Product Class: A: Standard product which is a stock item could be returned within the returns guidelines/period
REACH Regulation Information
There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and our established procedures for screening our products for Substances of Very High Concern. We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classification Standards
- eClass: Multiple versions supported (6, 7.1, 8, 9, 9.1, 12, 14)
- ETIM: Versions 7, 8, 9 supported
- UNSPSC: Version 15 supported
- IDEA: Version 4 supported
Applications
This mounting plate is ideal for industrial automation applications requiring AS-Interface connectivity, particularly in:
- Factory automation systems with standard DIN rail mounting
- Process control installations
- Industrial machinery integration
- Building automation systems
- Control cabinet installations
- Modular automation systems
Download existing graphical data for this product:
Additional Information
| IP Rating | IP67 |
| Compliance/Certifications | CE / DNV / EAC / UKCA / UL |
| Temperature: Operating | -25 °C to 85 °C |
| Part Depth (mm) | 30mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 80mm |
| Operating Voltage | 26.5 - 31.6 V |
Technical Documentation & Downloads
Additional Datasheet
CAD Drawing
Technical CAD drawing file

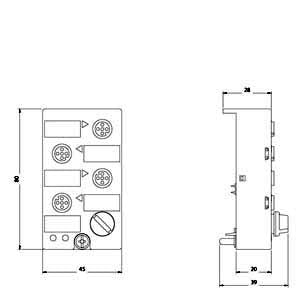

Dimensional Drawing
Physical dimensions and measurements
Installation Guide
Step-by-step installation instructions
Selection Guide
Product selection assistance
Product Info Page
Official Siemens product page
Catalog Page
View in Siemens catalog
