Product Overview

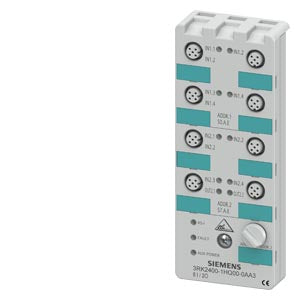

AS-i compact module K60 digital A/B slave, 8 DI/2 DQ, IP67

This AS-i compact module K60 digital A/B slave (Article Number: 3RK2400-1HQ00-0AA3) provides versatile I/O capabilities for industrial automation applications with IP67 protection. The module features 8 digital inputs configured as 3 x 2 inputs and 2 x 1 input/1 output with a maximum 200 mA sensor supply, plus 2 digital outputs rated at 2 A, 24 V DC. The unit includes 8 x M12 sockets with Y assignment for flexible connectivity. Note: Mounting plate 3RK1901-0CA00 must be ordered separately.

Key Features

• 8 Digital Inputs (DI) with flexible configuration (3 x 2 inputs + 2 x 1 input/1 output)
• 2 Digital Outputs (DQ) rated at 2 A, 24 V DC per output
• IP67 protection rating for harsh industrial environments
• AS-Interface A/B slave compatibility with specification 3.0
• 8 x M12 sockets with Y assignment for versatile connectivity
• Compact K60 design for space-efficient installation
• Maximum 200 mA sensor supply for reliable sensor operation

Technical Specifications

• Net Weight: 0.187 kg
• Packaging Dimensions: 75.00 x 165.00 x 45.00 mm
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece
• Country of Origin: Czech Republic
• Input Configuration: 3 x 2 inputs + 2 x 1 input/1 output
• Output Voltage: 24 V DC
• Output Current: 2 A per output
• Sensor Supply: Maximum 200 mA
• Protection Rating: IP67
• Connection Type: 8 x M12 sockets (Y assignment)

Applications

• Industrial automation systems requiring distributed I/O with mixed configurations
• Manufacturing environments with harsh conditions requiring IP67 protection
• AS-Interface networks for sensor and actuator connectivity
• Process control applications requiring reliable digital I/O with flexible input/output ratios
• Machine control systems with AS-i fieldbus architecture
• Factory automation with multiple sensor inputs and limited output requirements

Important Notes

• Mounting plate 3RK1901-0CA00 must be ordered separately for proper installation
• Compatible with AS-Interface specification 3.0
• Supports both A and B slave configurations
• Flexible input configuration: 3 x 2 inputs and 2 x 1 input/1 output
• Maximum sensor supply current of 200 mA

Product Classifications

• Product Lifecycle: PM300 Active Product
• eClass: 27-24-26-04 (versions 6-14)
• ETIM: EC001599 (versions 7, 8 & 9)
• UNSPSC: 32-15-17-05

Compliance & Certifications

• Export Control: AL: N / ECCN: N
• RoHS Compliance: Since 28.05.2009
• WEEE Take-Back Obligation: Yes

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w): Lead and Lead monoxide (lead oxide). Based on current information, these substances do not pose risk when used as intended, including disposal. Please refer to product documentation for additional guidance.

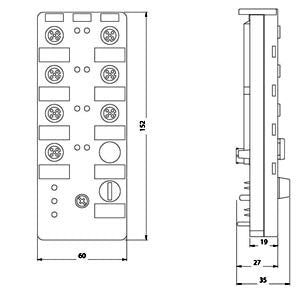

Download existing graphical data for this product:
