Product Overview

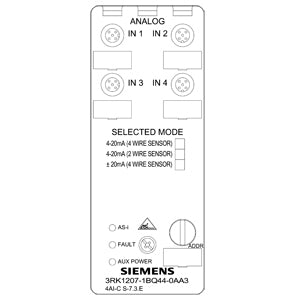

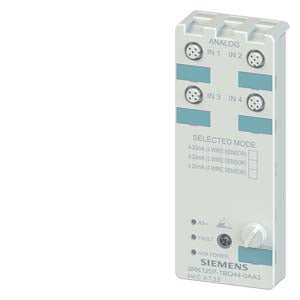

The 3RK1207-1BQ44-0AA3 is an AS-i compact module K60 designed for analog input applications in industrial automation systems. This IP67-rated module features 4 analog inputs with current signal processing capabilities (4..20 mA), supporting ±20 mA for 4-wire sensors. The module provides high-precision analog signal acquisition through M12 socket connections, making it ideal for distributed automation applications requiring robust analog signal processing.

Key Features

Analog Inputs: 4 analog inputs (AI) provide precise current signal measurement and processing for industrial sensors.

Current Signal Range: Supports 4..20 mA standard industrial current signals with ±20 mA capability for 4-wire sensors.

Connection Type: 4 x M12 socket connections ensure secure and reliable electrical connections in industrial environments.

Protection Rating: IP67 rating provides excellent protection against dust ingress and water immersion, suitable for harsh industrial conditions.

K60 Form Factor: Advanced K60 design offers enhanced analog processing capabilities with compact installation footprint.

AS-i Communication: Integrated AS-Interface communication enables seamless integration with AS-i master systems and distributed control architectures.

Technical Specifications

• I/O Configuration: 4 analog inputs (AI)
• Signal Type: Current (4..20 mA, ±20 mA)
• Sensor Compatibility: 4-wire sensors
• Connection Type: 4 x M12 socket
• Protection Rating: IP67
• Operating Temperature: Industrial temperature range
• Net Weight: 0.192 kg
• Packaging Dimensions: 75.00 x 165.00 x 45.00 mm
• Country of Origin: Czech Republic

Applications & Benefits

The AS-i compact module K60 is designed for field-level analog signal acquisition in industrial automation systems. The module integrates seamlessly into AS-Interface networks, providing distributed analog I/O capabilities that enable precise measurement and control of process variables.

Key Benefits:

• High-precision analog signal processing
• IP67 protection for harsh industrial environments
• K60 advanced form factor for enhanced functionality
• M12 connector technology for secure field connections
• AS-Interface communication for simplified system integration
• Support for standard 4..20 mA industrial current signals
• ±20 mA capability for enhanced sensor compatibility

Signal Processing Capabilities

The module provides advanced analog signal processing features:

• Preprocessing of analog value transfer in the master enables rapid evaluation
• Up to four analog values can be detected using one analog module
• Faster transmission and conversion of analog values
• Enhanced resolution and accuracy for precise measurement applications
• Support for various industrial current signal ranges

System Integration

The module operates within AS-Interface networks, enabling:

• Simple two-wire communication and power supply
• Reduced installation and wiring costs for analog applications
• Flexible system configuration and expansion
• Real-time analog data communication with AS-i master systems
• Integration with SIMATIC automation systems
• Distributed analog I/O architecture

Important: Mounting plate 3RK1901-0CA00 must be ordered separately for proper installation.

Installation & Configuration

The compact analog module is designed for easy field installation:

• Mounting requires separate mounting plate (3RK1901-0CA00)
• M12 connectors provide secure analog sensor connections
• AS-i addressing required for network integration
• Compatible with standard AS-Interface addressing devices
• Supports 4-wire sensor configurations

Environmental Specifications

• Protection Rating: IP67 (dust-tight and protected against water immersion)
• Operating Conditions: Suitable for harsh industrial environments
• Temperature Range: Industrial operating temperature range
• Vibration Resistance: Designed for industrial automation applications
• EMC Compatibility: Compliant with industrial electromagnetic compatibility standards

Quality & Compliance

• RoHS Compliance: Since 01.05.2012
• Product Lifecycle: PM300: Active Product
• Export Control: AL: N / ECCN: EAR99
• WEEE Compliance: Take-back obligation applicable
• EAN: 4011209624979
• UPC: 754554931050

Product Classification

• eClass: 27-24-26-01
• ETIM: EC001596
• UNSPSC: 32-15-17-05

Download existing graphical data for this product:

• Product Datasheet
• Analog I/O Modules K60 Product Family
• Online Support Portal

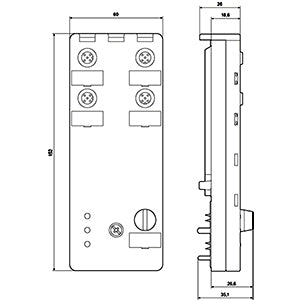

• 3D Models and Technical Drawings
• AS-Interface Analog Modules Manual
• AS-Interface Introduction Guide
• AS-Interface Systems Overview
• Required Mounting Plate 3RK1901-0CA00
