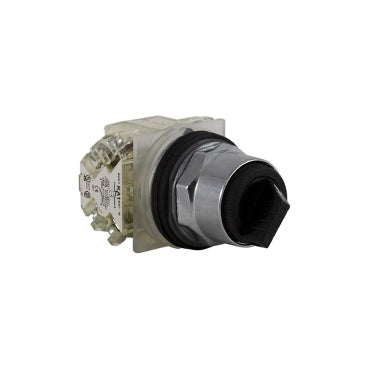

Schneider Selector switch, type K, 2 positon, 2 c/o, 10A Schneider Electric
Schneider Selector switch, type K, 2 positon, 2 c/o, 10A Schneider Electric

Schneider Selector switch, type K, 2 positon, 2 c/o, 10A Part number 9001KS11BH2

The 9001KS11BH2 is a Harmony 9001K series selector switch with a black standard knob handle, offering 2 maintained positions and 2 c/o (DPDT) contact configuration. It is rated 10 A at up to 600 VAC, with silver alloy contacts and screw clamp terminals for panel wiring. The unit has a...
Vendor: Schneider Electric
Availability: In stock
Product type: Control Panel
Please hurry! Only 3 left in stock
Description
Description
x

The 9001KS11BH2 is a Harmony 9001K series selector switch with a black standard knob handle, offering 2 maintained positions and 2 c/o (DPDT) contact configuration. It is rated 10 A at up to 600 VAC, with silver alloy contacts and screw clamp terminals for panel wiring. The unit has a metal bezel, mounts in a 30 mm panel cutout, and carries an IP65 rating, making it suitable for selector control functions on industrial control panels and machine operator stations.

Key specifications

  • IP rating: IP65
  • Rated current: 10 A
  • Mounting: Panel Mount
Specifications
Specifications
x

Selector Switch, Harmony 9001K, Metal, Standard Handle, Black, 30mm, 2 Positions, Stay Put, 2 CO

Product Overview

Part Number9001KS11BH2
Product TypeSelector Switch
SeriesHarmony 9001K
Device Short NameK
Operator TypeMaintained (Stay Put)
Operator ProfileBlack Standard Handle
Mounting Diameter30 mm (1.18 in)
Positions2
Contact Configuration2 C/O (DPDT)
Terminal TypeScrew Clamp Terminals (1 x 0.22...2 x 1.5 mm²)
Bezel MaterialMetal
Device PresentationComplete Product

Technical Specifications

Current Rating10 A
Voltage Rating600 VAC
Contact MaterialSilver Alloy
Cam Profile5
Mounting TypePanel Mount
ActuatorKnob
IlluminationNon-Illuminated
Switch FunctionMaintained

Environmental Data

NEMA Degree of Protection1, 2, 3, 3R, 4, 6, 12, 13
IP RatingIP65
Operating TemperatureNot Specified
Storage TemperatureNot Specified
HumidityNot Specified

Certifications & Standards

UL ListedFile E42259 CCN NKCR
CSA CertifiedLR24590 Class 3211 03
CE MarkedYes
RoHS CompliantPro-active compliance (Product out of EU RoHS legal scope)
REACH RegulationREACH Declaration
China RoHS RegulationChina RoHS Declaration
Mercury FreeYes

Warranty

Warranty Period18 Months

Environmental Commitment

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via the ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Documents

Documents
Documents
x
Download Datasheet
