Pflitsch Cable gland, M32x1.5, 10.5-7.0mm
Pflitsch Cable gland, M32x1.5, 10.5-7.0mm

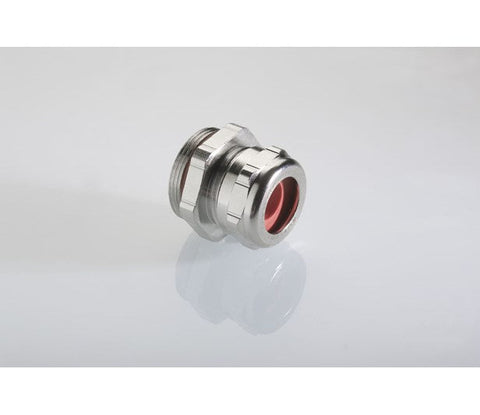

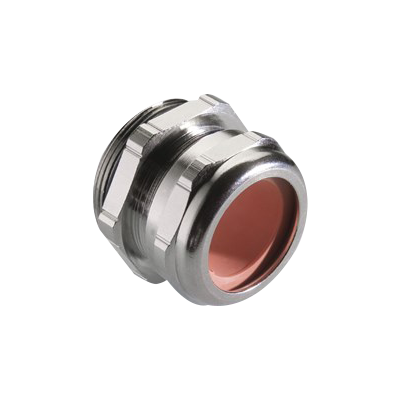

Pflitsch Cable gland, M32x1.5, 10.5-7.0mm Part number 23254DP11

This cable gland provides a mechanical entry point for cables passing into an enclosure, with a metric M32x1.5 thread suited to standard panel or gland-plate cut-outs. It clamps cables within a diameter range of 7.0 to 10.5mm, securing the cable and maintaining the integrity of the enclosure wall at the...
Vendor: Pflitsch
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Description
Description
x

This cable gland provides a mechanical entry point for cables passing into an enclosure, with a metric M32x1.5 thread suited to standard panel or gland-plate cut-outs. It clamps cables within a diameter range of 7.0 to 10.5mm, securing the cable and maintaining the integrity of the enclosure wall at the entry point. It is typically used in industrial control panels and machine enclosures where cables must be routed in through a threaded aperture.

Specifications
Specifications
x

PFLITSCH UNI Dicht Cable Gland

Product Information

Product Code: 23254dp11

Description

Brass, nickel-plated, Metric connection thread EN 60423, With o-ring HNBR, Type of protection IP 68 up to 10 bar, Type 4X, Strain relief up to class A, EN 62444

Specifications

  • Material sealing insert: TPE-V
  • Temperature range min (°C): -40.0
  • Temperature range max (°C): 135.0
  • Connection thread (A): M32x1,5
  • Connection length (mm) (D): 8.0
  • Connection length (mm) (D) range: 0 > 10mm
  • Sealing range min (mm): 7.0
  • Sealing range max (mm): 10.5
  • Sealing range max (mm) Range: 0 > 20mm
  • Mounting height (mm) (C): 26.0
  • Mounting height (mm) (C) range: 20 > 40mm
  • Type of Protection: 68
  • Spanner width gland body: 35.0
  • Corner dimension gland body: 38.5
  • Spanner width pressure screw: 30.0
  • Corner dimension pressure screw: 33.5
