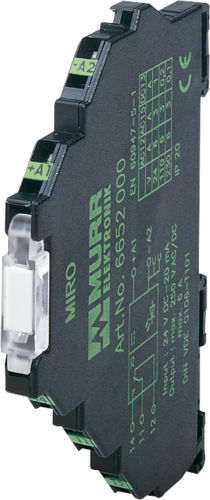

Murr Miro on-delay time relay, 24VDC, 1W

Product Overview

The Murrelektronik MIRO 6.2 is an on-delay timer relay designed for industrial control applications requiring precise timing functions. This compact relay module features a switch-on delay range of 0.1 to 10 seconds with spring clamp terminals for easy installation. Operating on 24VDC input voltage, it provides reliable relay output switching for 250 VAC/DC loads up to 6A.

Key Features

• On-delay timer function with 0.1 to 10 second delay range
• 24VDC input voltage operation
• Relay output rated for 250 VAC/DC at 6A switching capacity
• Spring clamp terminals for tool-free wire connections
• Compact MIRO 6.2 series housing with DIN-rail mounting
• Safe isolation between input and output circuits
• LED status indication for operational feedback

Technical Specifications

• Model: MIRO 6.2 Timer On-Delay
• Article Number: 6652300

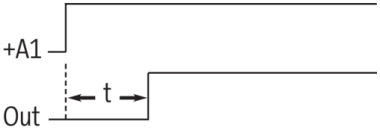

• Timer Function: On-delay (switch-on delay)
• Delay Range: 0.1 to 10 seconds
• Input Voltage: 24VDC
• Output Rating: 250 VAC/DC, 6A
• Contact Configuration: 1 changeover contact (NO/NC)

Connection Specifications

• Terminal Type: Tool-free spring clamp design
• Contact Rating: 6A at 250 VAC/DC
• Contact Type: Changeover (SPDT) relay output
• Isolation: Safe electrical isolation between input and output
• Mounting: DIN-rail mountable

Applications

• Industrial automation timing applications
• Motor and equipment start-up delay functions
• Sequential control system operations
• Process control timing functions
• Machine control delayed switching operations

Benefits

• Precise timing control for industrial automation applications
• Tool-free spring clamp terminals enable quick and secure connections
• Compact design saves valuable control panel space
• Reliable relay output suitable for high-current switching applications
• Safe isolation ensures electrical safety in control circuits

Download existing graphical data for this product:

• Product Specification Sheet
