Murr Miro Multifunction timer with relay, screw, 24VDC

Product Overview

The Murrelektronik Miro 6.2 Multi-Timer is a versatile multifunctional timing relay module providing impulse expansion functionality with an adjustable range from 0.1 to 300 seconds. This compact 6.2mm width module features high-current relay output switching of up to 6A at 250 VAC/DC with safe separation compliance for reliable industrial automation applications requiring flexible timing control and pulse extension.

Key Features

• Multi-timer with impulse expansion: 0.1-300 seconds adjustable range
• High-current relay output: 6A at 250 VAC/DC
• Ultra-compact 6.2mm width for space-efficient installation
• Safe separation compliance (EN 60947-1)
• DIN rail mounting with screw terminal connections
• 24 VDC operation for industrial control systems
• 1 C/O contact configuration

Technical Specifications

• Model: Miro 6.2 Multi-Timer
• Article Number: 52350
• Function: Impulse expansion (0.1-300 seconds)
• Input Voltage: 24 VDC
• Output Rating: 250 VAC/DC maximum, 6A continuous
• Contact Configuration: 1 C/O (changeover) contact
• Module Width: 6.2mm
• Connection Type: Screw terminals

Electrical Characteristics

• Control Input: 24 VDC operation

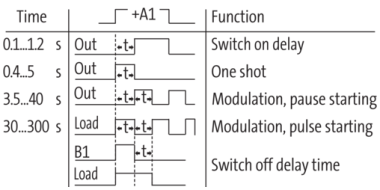

• Timer Function: Multi-timer with impulse expansion capability
• Output Type: Single pole changeover relay contact (1 C/O)
• Timing Range: 0.1-300 seconds impulse expansion
• Adjustment: Continuous adjustment within timing range

Standards and Compliance

• Safety Standards: EN 60947-1 safe separation compliance
• Industrial Standards: Designed for industrial automation applications
• DIN Rail Standards: Standard DIN rail mounting compatibility
• Quality Standards: Murrelektronik industrial quality and reliability
• Environmental Standards: Industrial environmental protection ratings

Applications

• Pulse extension and signal conditioning
• Industrial control signal timing expansion
• Process control impulse modification
• Signal synchronization and timing coordination
• Motor control pulse extension applications
• Automation system timing signal processing

Installation Features

• Compact Design: 6.2mm width maximizes cabinet space
• DIN Rail Mounting: Standard industrial mounting
• Screw Terminals: Secure wiring connections
• Easy Configuration: Adjustable timing range
• Professional Integration: Standard module format

Multi-Timer Benefits

• Versatile Timing: Wide 0.1-300 second range for diverse applications
• Impulse Expansion: Extends short input pulses to required durations
• High Current Capability: 6A switching in ultra-compact design
• Flexible Operation: Changeover contact for versatile switching
• Industrial Reliability: Safe separation standards compliance

Benefits

• Provides flexible impulse expansion timing from 0.1 to 300 seconds for versatile signal conditioning applications
• Offers high-current 6A changeover contact switching capability in ultra-compact 6.2mm width design
• Ensures safe operation with EN 60947-1 compliant electrical separation standards
• Supports reliable industrial automation with DIN rail mounting and secure screw terminals
• Enables precise pulse extension and signal timing modification for diverse control system requirements

Download existing graphical data for this product:

• Product Specification Sheet
