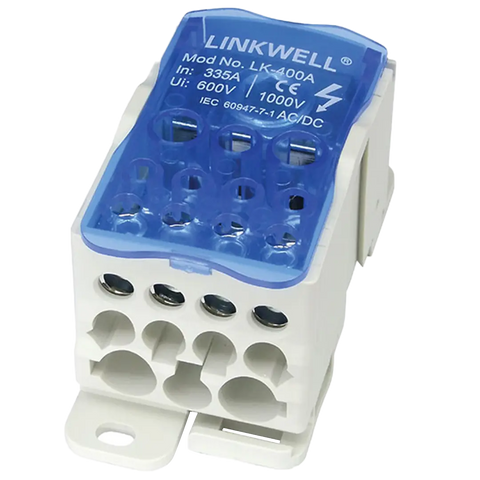

Linkwell Distribution block, 1-pole, 12-way, 400A

The Linkwell Distribution Blocks have an input voltage of 690V and an output current of 400A. The Pole design for DIN rail mounting or mounting with screws.

Parameter

Design: Linkwell Distribution block 400A

Installation Hole: 85mm x 29mm

Mounting: Clip-DIN Rail

Screws: Yes

Mechanical data

Easy wiring: Hinged or removable cover

Confirmation of connection: Visual inspection of wire

Compact: Space saving

High conductivity: Tinned copper block

Amp: 355

Dimensions: 96mm x 50mm x 49mm

IPk KA: 51

Ambient conditions

Protection: IP20
