Description

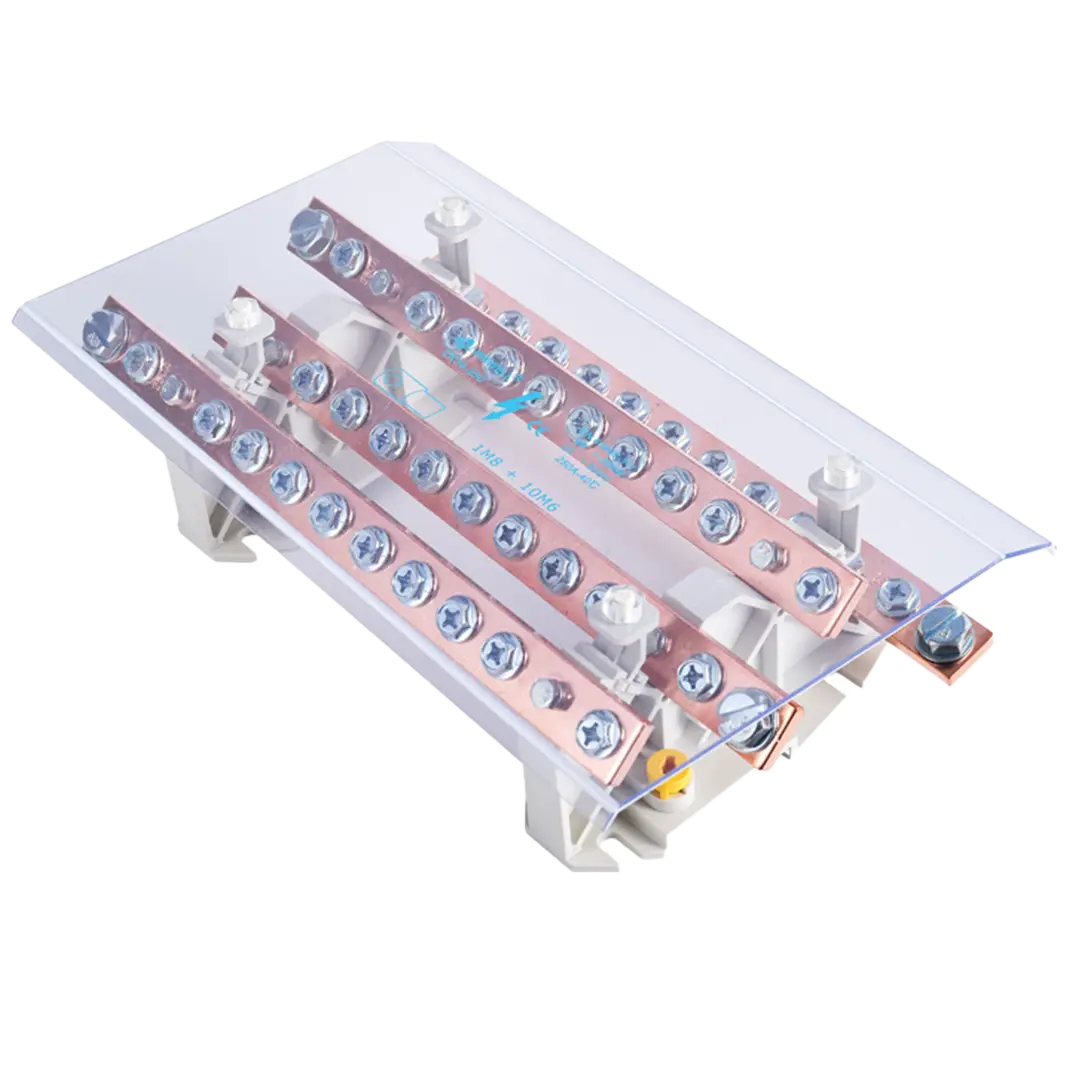

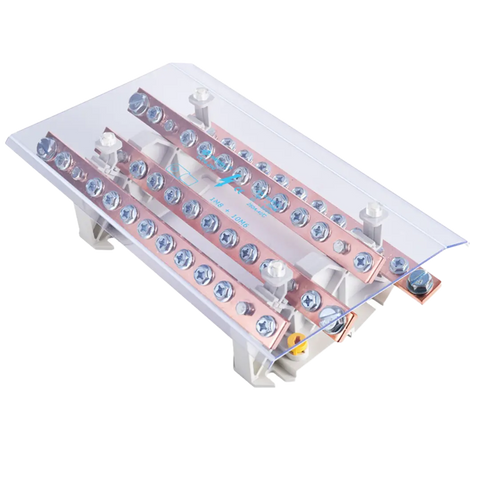

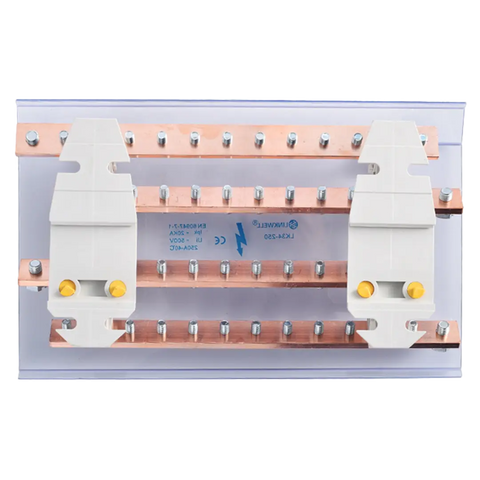

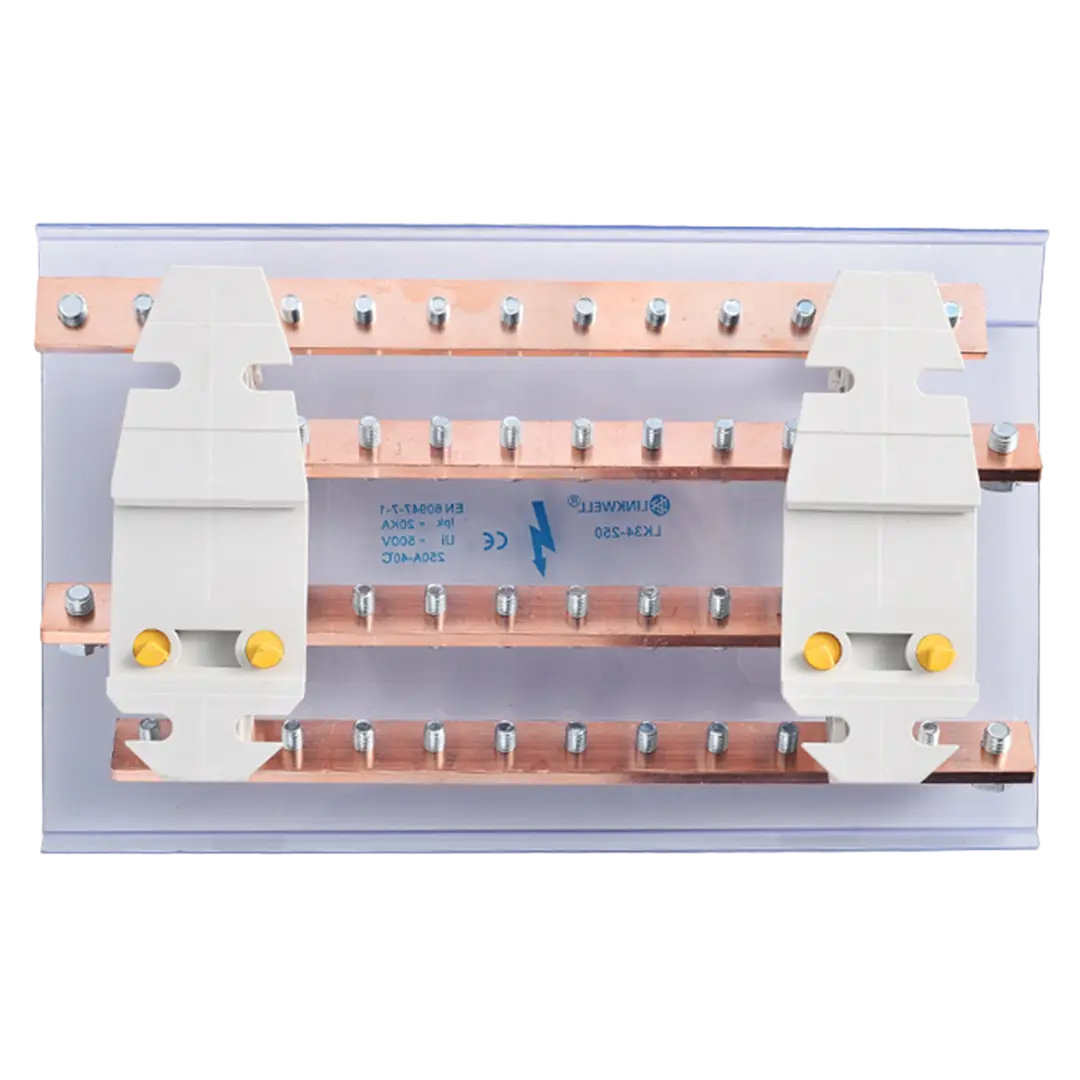

xLinkwells bus bar is designed to make a solid connection point from one source to many branch circuits.
Parameter
\nDesign: Linkwell Busbar Distribution Block
\nNumber of Poles: 4
\nPhase: 4
\nColor: clear/grey
\n\n
\n
Mechanical data
\nMaterial: Polycarbonate
\nProtection: Transparent cover
\nCopper platoon size: 20mm x 5mm x 248mm
\nIn/Out: 10x M6 + 1x M8
\nIPK
Specifications
x| Temperature: Operating | -30°C to 110°C (PA) / '-60°C to 135°C (PC) |
| Part Depth (mm) | 77 mm |
| Part Width (mm) | 280 mm |
| Part Height (mm) | 170 mm |
| Material: Product | Brass / Copper / PA / PC |
| Operating Voltage | 660 V |
| Mounting Type | Snap-on DIN rail |
| Current Rating / Rated Current | 250 A |
| Colour | Clear / Grey |
