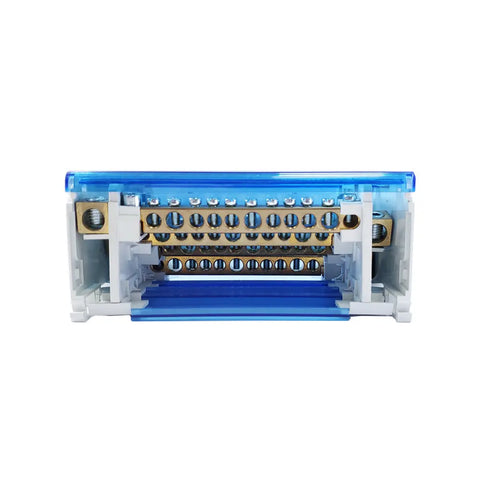

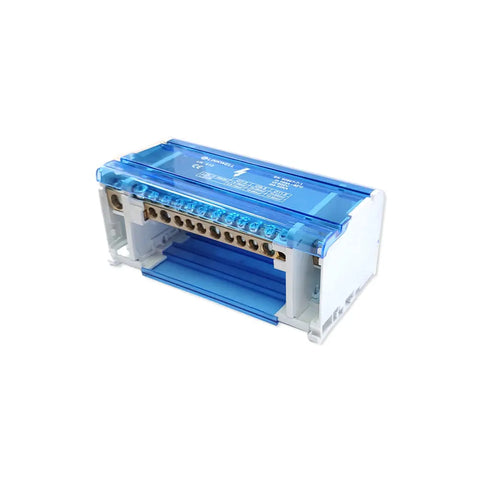

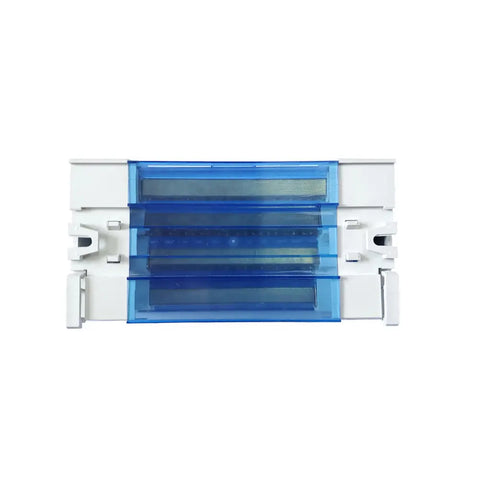

Linkwell Distribution block, 4-pole, 160A, 500V, 170x70x85mm

Linkwell's Distribution block is designed to effectively and efficiently distribute current from a single input source and output to multiple devices in the branch circuit. This optimises the number of wires in the electrical panel. The DIN mounted power distribution terminal block system is conveniently available in multiple pole configurations...
Vendor: Linkwell
SKU: UK412
Availability: In stock
Product type: Control Panel
Please hurry! Only 18 left in stock
Description
Description
x

Linkwell's Distribution block is designed to effectively and efficiently distribute current from a single input source and output to multiple devices in the branch circuit. This optimises the number of wires in the electrical panel. The DIN mounted power distribution terminal block system is conveniently available in multiple pole configurations and current capacities.

Parameter

Design: Linkwell Distribution block

Terminals per pole: 4

Terminals Per Pole Dimension: 3x 16mm, 1x 25mm, 7x 6mm

Dimensions: 170mm x 70mm x 85mm

Wire Size-Solid Core, Lead Multi-Strand, Lead:

  • 1x 10–50mm2
  • 3x 10–35mm2
  • 8x 2.5–16mm


Electrical data data

Current: 160A

Voltage: 500V

Specifications
Specifications
x
IP RatingIP20
Country of OriginChina
Compliance/CertificationsCE / IEC 60947-7-1 / RoHS
Part Depth (mm)70mm
Part Width (mm)170mm
Part Height (mm)90mm
Packaging size / unit1 pc(s)
Material: ProductPolyester with brass contacts
Material: CoverPCS
Material: ScrewSteel
Mounting Type\nFixing screws / Mounting to 35mm DIN rail
Current Rating / Rated Current160 A / 500V
Documents
Documents
x
Download Datasheet
