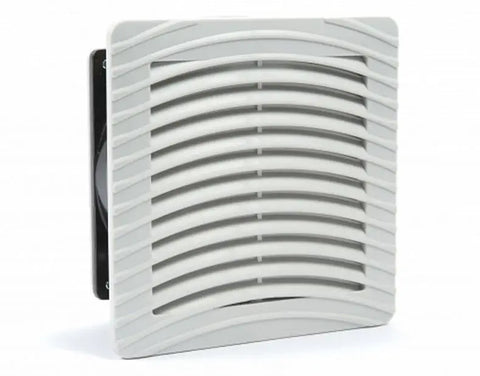

Linkwell Fan and filter, panel mount, IP54, 109x109

The Linkwell grey Fan and filters are designed for swiftness and ease when it comes to mounting. The airflow filter mats further guard control cabinets enclosures against dust and make it easier to clean when there is a dust build-up. the fans and filters meet the worldwide Inpress Protection - IP54

Parameter

Design: Linkwell Fan and Filter, Panel Mount

Phase: 1

Air flow direction: A/P

Mechanical data

Noise level dB(A): 35

Dimensions: 109mm x 109mm x 59mm

Features: Panel Mount

Electrical data

Rated voltage: 240V AC

Rated Frequency: 50/60

Rated Power: 13 W

Rated current max.: 0.08 – 0.07

Airflow: 67m3/h

Ambient conditions

Operation Temperature range: -30°C -+ 70°C

Protection degree: IP54
