Description

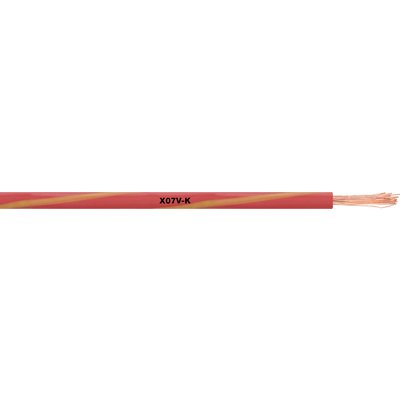

xThis power and control cable is suitable for wiring in industrial environments, offering flame-retardant twin-color PVC insulation. Designed for use in tubes or buried in plaster, it provides reliable electrical performance with a nominal voltage of 450/750V.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-31 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Material: Inner Conductor / Core | Fine-wire strand made of bare copper wires |
| Material: Insulation / Inner sheath | PVC |
| Bending Radius | 4 x outer diameter if used as defined for H07V-K; 2 x outer diameter for short-term bending |
| Drum Length / Coil Length | 150 m / spool |
| Diameter: External conduit size (mm) | 2.8mm - 3.4mm |
| Weight | 22000g |
| Test Voltage | 2500 V |
| Current Rating | VDE 0298 Part 4 / EN 50565-1 / VDE 0298-565-1 |
| Colour | Red / White (Core Colour) |
