Description

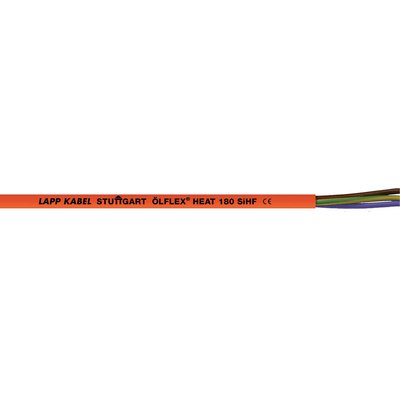

xThis silicone cable is heat-resistant up to +180°C and well-suited for high-temperature applications in industries such as steelworks and furnaces. It is halogen-free, resistant to chemicals and oils, and maintains flexibility in confined spaces.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-83 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -60°C to 180°C (adequate ventilation required) |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | Silicone-based |
| Material: Jacket / Outer Sheath | Silicone-based |
| Bending Radius | Occasional flexing: 15 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 15.6mm |
| Weight | 486000g |
| Test Voltage | 2000 V |
| Colour | Red Brown |
