Description

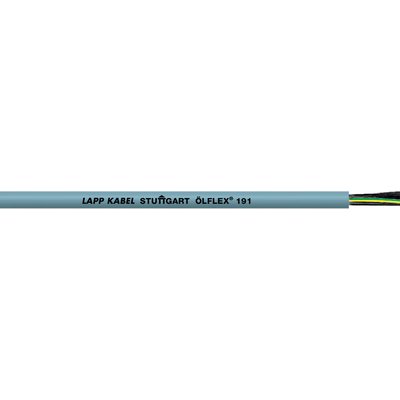

xThis oil-resistant PVC control cable is suitable for plant engineering, industrial machinery, and HVAC systems. Designed for medium mechanical loads, it supports applications with occasional flexing and provides excellent chemical resistance. Ideal for indoor environments, it includes a 4 kV test voltage for high electrical performance.
Specifications
x| Compliance / Certifications | CSA AWM I A/B II A/B / UL AWM Style 21098 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 / UL 1581 §1061 Cable Flame Test |
| Temperature: Operating | -5°C to 70°C; UL/CSA: -5°C to 90°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 15 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 7.3mm |
| Weight | 91000g |
| Test Voltage | 4000 V |
| Colour | Black / White - Green/Yellow Ground |
