Description

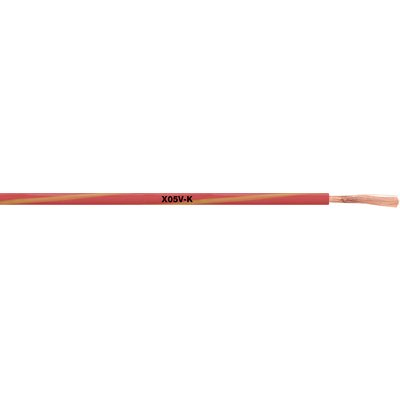

xThis X05V-K cable is a power and control cable designed for internal wiring of devices and installations in lighting equipment or signal systems. The cable features twin-color spiralized PVC insulation, providing flame retardancy according to IEC 60332-1-2. It is suitable for protected installations in and on plaster within tubes. The cable has a nominal voltage of 300/500V and is rated for a temperature range from -40°C to +70°C. It is flexible, easy to handle, and provides a fine copper conductor, making it ideal for a wide range of industrial applications.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-31 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. IEC 60332-1-2 |
| Material: Inner Conductor / Core | Fine-wire strand made of bare copper wires |
| Material: Insulation / Inner sheath | PVC |
| Bending Radius | 4 x outer diameter (OD) if used as defined for H05V-K; 2 x OD for cautious bending |
| Drum Length / Coil Length | 250 m / spool |
| Diameter: External conduit size (mm) | 2.1mm - 2.5mm |
| Weight | 9 kg / km |
| Test Voltage | 2 000 V |
| Voltage Range/Rating | 300/500 V |
| Current Rating | VDE 0298 Part 4 / EN 50565-1 / VDE 0298-565-1 |
| Colour | Blue / White (Core Colour) |
