Description

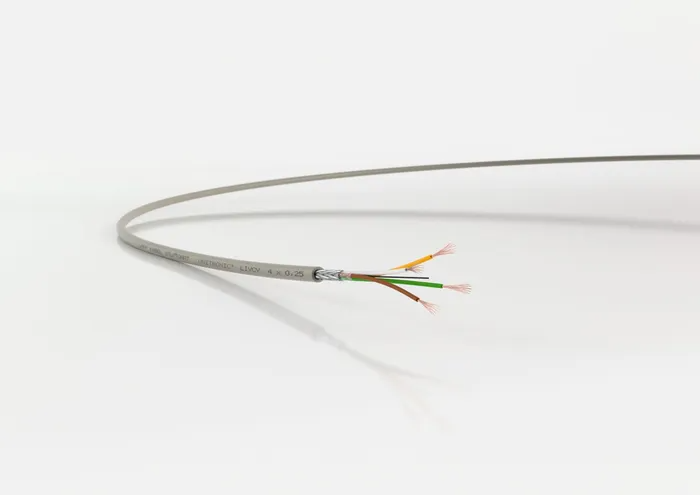

xThis UNITRONIC® low-frequency data cable provides electromagnetic shielding and is ideal for fixed installations in computer and instrumentation systems. It is constructed with a durable PVC sheath for indoor use.
Specifications
x| Compliance / Certifications | based on standard VDE 0812 and EN 50288-7 |
| Country of Origin | Germany |
| Flammability | flame retardant acc. to IEC 60332-1-2 resp / EN 60332-1-2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | occasional flexing: 15 x outer diameter fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 7.3mm |
| Weight | 104000g |
| Test Voltage | 0.14 mm²: 1200 V ≥ 0.25 mm²: 1500 V |
| Colour | Grey |
| RAL Code | RAL 7032 |
