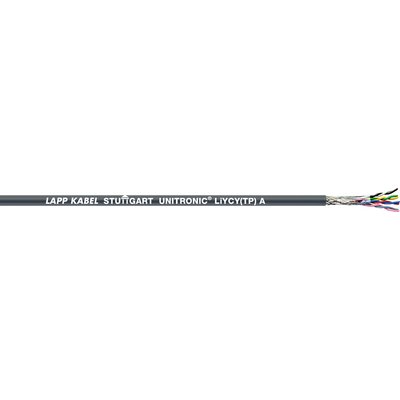

Lapp Unitronic LiYCY (TP) A PVC data cable, 8x2xAWG26/7
Lapp Unitronic LiYCY (TP) A PVC data cable, 8x2xAWG26/7

Lapp Unitronic LiYCY (TP) A PVC data cable, 8x2xAWG26/7

This screened data transmission cable with twisted pairs is ideal for the North American market, especially in industrial applications requiring UL/CSA certification. The cable offers enhanced electrical interference protection and is flame-retardant, designed for dry and damp environments, with a special PVC compound sheath for durability.
Vendor: Lapp Kabel
SKU: 0066208
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 48 left in stock
Description
Description
x
This screened data transmission cable with twisted pairs is ideal for the North American market, especially in industrial applications requiring UL/CSA certification. The cable offers enhanced electrical interference protection and is flame-retardant, designed for dry and damp environments, with a special PVC compound sheath for durability.
Specifications
Specifications
x
Compliance / CertificationsCSA AWM I/II A / UL AWM Style 2464 / UL File No. E63634
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2 / UL VW-1 & CSA FT 1
Temperature: Operating-5°C to 70°C (UL: 80 °C)
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 15 x outer diameter Fixed installation: 6 x outer diameter
Diameter: External conduit size (mm)7.9mm
Weight 85000g
Test Voltage1500 V
ColourDark Grey
Documents
Documents
x
Download Datasheet
