Lapp Skintop MSR-M Cable gland, reducing seal, M25 x 1.5
Lapp Skintop MSR-M Cable gland, reducing seal, M25 x 1.5

Lapp Skintop MSR-M Cable gland, reducing seal, M25 x 1.5

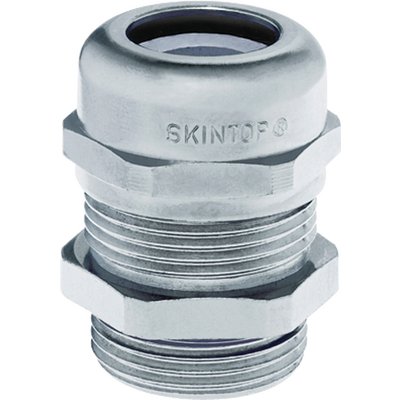

This SKINTOP® MSR-M cable gland, featuring a reducing seal insert, allows for reliable sealing of cables with smaller diameters. It is highly resistant to chemicals and mechanical stress, suitable for use in control systems and machinery.
Vendor: Lapp Kabel
SKU: 53112130
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 34 left in stock
Description
Description
x
This SKINTOP® MSR-M cable gland, featuring a reducing seal insert, allows for reliable sealing of cables with smaller diameters. It is highly resistant to chemicals and mechanical stress, suitable for use in control systems and machinery.
Specifications
Specifications
x
IP RatingIP 68 - 10 bar IP 69 (M12 - M63) NEMA Type 1, 4x, 6, 12
Compliance / CertificationsUL File Nr. E79903 / VDE, UL and DNV approval available up to size M75x1,5
Country of OriginGermany
Temperature: Operating-25°C to 100°C
MaterialBody: Nickel-plated brass Insert / Polyamide Sealing: CR / O-ring: NBR
Part Length (mm)38.5mm
Article Designation SizeM25 x 1.5
Thread: Length (mm)8mm
Pieces25 pc(s)
Documents
Documents
x
Download Datasheet
