Lapp Skintop K-M Atex plus Strain relief cable gland, blue, M40x1.5
Lapp Skintop K-M Atex plus Strain relief cable gland, blue, M40x1.5

Lapp Skintop K-M Atex plus Strain relief cable gland, blue, M40x1.5

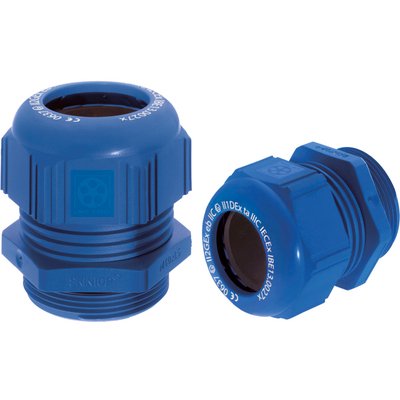

This SKINTOP® K-M ATEX plus blue cable gland provides a secure, explosion-proof connection for intrinsically safe circuits. It is impact-resistant and suitable for offshore, marine, and chemical industries, offering protection rating IP68 and a temperature range of -20°C to +80°C.
Vendor: Lapp Kabel
SKU: 54115450
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This SKINTOP® K-M ATEX plus blue cable gland provides a secure, explosion-proof connection for intrinsically safe circuits. It is impact-resistant and suitable for offshore, marine, and chemical industries, offering protection rating IP68 and a temperature range of -20°C to +80°C.
Specifications
Specifications
x
IP RatingIP 68 - 10 bar
Compliance / CertificationsCE 0637 Ex II 2G Ex eb IIC Ex II 1D Ex ta IIIC IECEx IBE 13.0027X / DIN EN 60079-0 / DIN EN 60079-7 / DIN EN 60079-31
Country of OriginGermany
Temperature: Operating-20°C to 80°C
MaterialBody: Special polyamide / O-ring: NBR / Seal: Special elastomer
ColourBlue
Documents
Documents
x
Download Datasheet
