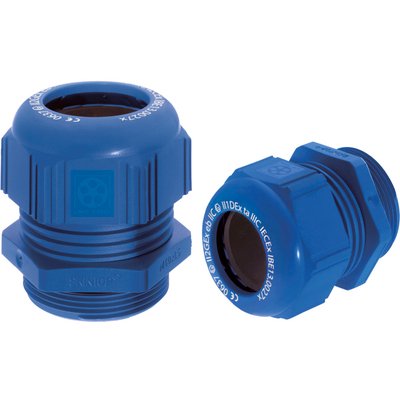

Lapp Skintop K-M 20 ATEX plus Plastic cable gland, blue
Lapp Skintop K-M 20 ATEX plus Plastic cable gland, blue

Lapp Skintop K-M 20 ATEX plus Plastic cable gland, blue

This robust, explosion-proof cable gland ensures safe connections in hazardous environments like the chemical and offshore industries. Offering IP68 protection, high strain relief, and temperature resistance from -20°C to +80°C, it is optimized for intrinsically safe circuits and mobile applications.
Vendor: Lapp Kabel
SKU: 54115420
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This robust, explosion-proof cable gland ensures safe connections in hazardous environments like the chemical and offshore industries. Offering IP68 protection, high strain relief, and temperature resistance from -20°C to +80°C, it is optimized for intrinsically safe circuits and mobile applications.
Specifications
Specifications
x
IP RatingIP 68 - 10 bar
IP RatingIP68
Compliance / CertificationsCE 0637 Ex II 2G Ex eb IIC Ex II 1D Ex ta IIIC IECEx IBE 13.0027X
Temperature: Operating-20°C to 80°C
MaterialBody: Special polyamide seal / Special elastomer O-ring: NBR
Part Length (mm)38mm
Article Designation SizeK-M 20 ATEX plus blue
Thread: Size20x1.5
Thread: Length (mm)9mm
Pieces50
Documents
Documents
x
Download Datasheet
