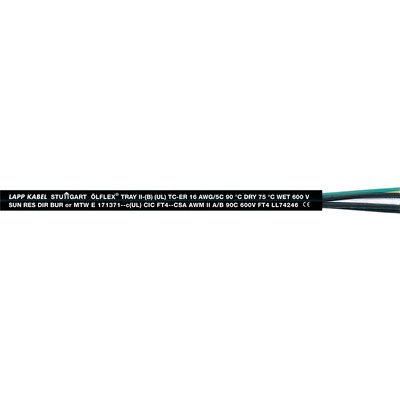

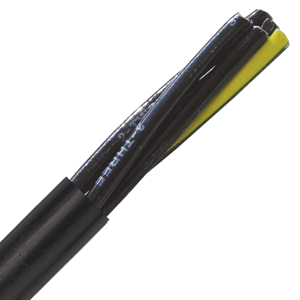

Lapp Ölflex Tray II cable, black, 5G 2.5mm² Part number 221405

This control cable is designed for use in industrial machinery and plant engineering in the USA. It is UL-rated for tray installation and exposed runs without additional protection, making it suitable for outdoor applications, direct burial, and wind turbines. The cable is resistant to oil, sunlight, and mechanical stress, with...
Vendor: Lapp Kabel
Rubicon Industrial Technology is an authorised South African distributor for Lapp Kabel.
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Description
Description
x
This control cable is designed for use in industrial machinery and plant engineering in the USA. It is UL-rated for tray installation and exposed runs without additional protection, making it suitable for outdoor applications, direct burial, and wind turbines. The cable is resistant to oil, sunlight, and mechanical stress, with a thermoplastic polymer outer jacket.
Specifications
Specifications
x
Compliance / CertificationsCAN: c(UL) CIC/ TC 600V FT4 (< 250 kcmil) [E171371] / (UL) DP-1 [E233406] / (UL) ITC-ER (18 - 12 AWG) [E196134] / (UL) MTW [E155920] / (UL) OIL RES I/ II, 75°C WET, 90°C DRY, SUN RES, DIR BUR, NEC/NFPA 70, NFPA 79 / (UL) PLTC-ER (18 - 12 AWG) [E216027] / (UL) TC-ER [E171371] / (UL) WTTC [E323700] / UL AWM (18 - 2 AWG) [E100338]
Country of OriginGermany
FlammabilityFlame-retardant acc. to CSA FT4
Temperature: Operating-25°C to 90°C (TC) / 105°C (AWM)
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheath
Material: Jacket / Outer SheathThermoplastic polymer
Diameter: External conduit size (mm)10.8mm
Weight 224000g
ColourBlack
