Description

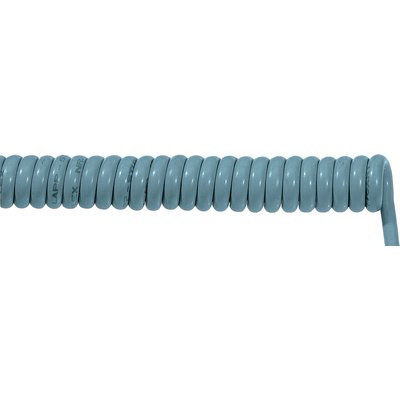

xThis PUR spiral cable offers high chemical resistance and is suitable for control and power applications in machines and mechanical engineering. It is designed to extend up to three times its unextended length, making it ideal for dynamic use with strong restoring forces. It resists oil, abrasion, and various chemical media.
Specifications
x| Compliance / Certifications | Core based on VDE 0812/0285 / Outer sheath based on VDE 0250/0285 |
| Country of Origin | Germany |
| Temperature: Operating | -5°C to 50°C |
| Material | Fine-wire strand - bare copper wires |
| Material: Inner Conductor / Core | Special PVC P8/1 |
| Material: Insulation / Inner sheath | PVC |
| Part Length (mm) | 1 250mm (extended) / 500mm (unextended) |
| Diameter (mm) | 8.3mm (cable) / 30mm (outer diameter) |
| Test Voltage | 3000 V |
