Lapp Ölflex Multi-standard SC 2.1 cable, white, 0.5mm²
Lapp Ölflex Multi-standard SC 2.1 cable, white, 0.5mm²
Lapp Ölflex Multi-standard SC 2.1 cable, white, 0.5mm²
Lapp Ölflex Multi-standard SC 2.1 cable, white, 0.5mm²
Lapp Ölflex Multi-standard SC 2.1 cable, white, 0.5mm²
Lapp Ölflex Multi-standard SC 2.1 cable, white, 0.5mm²

Lapp Ölflex Multi-standard SC 2.1 cable, white, 0.5mm²

This cable is optimized for industrial wiring, offering flame resistance, oil resistance, and compatibility with major global standards, making it suitable for internal wiring in devices and control cabinets across various regions.
Vendor: Lapp Kabel
SKU: 4160105
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This cable is optimized for industrial wiring, offering flame resistance, oil resistance, and compatibility with major global standards, making it suitable for internal wiring in devices and control cabinets across various regions.
Specifications
Specifications
x
Compliance / Certifications H07V-K acc. EN 50525-2-31 / CSA TEW (by CSA acc. CSA standard CSA C22.2 No. 127, CSA class 5835-01) / UL AWM style 1015 (by UL acc. UL standard UL 758, U.I. Lapp GmbH's UL AWM file number: E63634) / (UL) MTW (by UL acc. UL standard UL 1063, U.I. Lapp GmbH's (UL) MTW file number: E198296)
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2 / UL VW1/CSA FT1
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Bending RadiusOD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤ 12 mm: 5 x OD*/3 x OD**; OD > 12 mm: 6 x OD*/4 x OD**

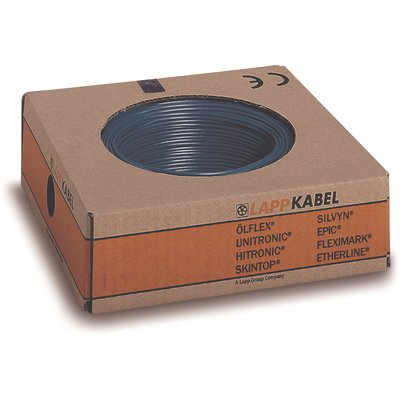

Drum Length / Coil Length100 m/ring
Diameter: External conduit size (mm)2.7mm
Weight 11000g
ColourWhite (Core Colour)
