Description

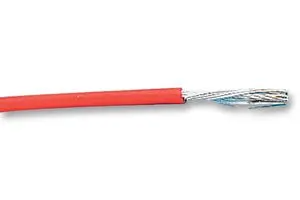

xThis MULTI-STANDARD SC 2.1 single core cable is suited for control cabinet wiring. It features PVC insulation, flame-retardancy, and oil resistance, with a voltage rating of 450/750 V, and meets UL and CSA standards.
Specifications
x| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 / UL VW1/CSA FT1 |
| Temperature: Operating | HAR/IEC: -40°C to 70°C / UL (AWM): -40°C to 105°C / UL (MTW): -40°C to 90°C / CSA (TEW): up to 105°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | Rubber |
| Bending Radius | OD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤ 12 mm: 5 x OD*/3 x OD**; OD > 12 mm: 6 x OD*/4 x OD** |
| Diameter: External conduit size (mm) | 2.7mm |
| Weight | 11000g |
