Description

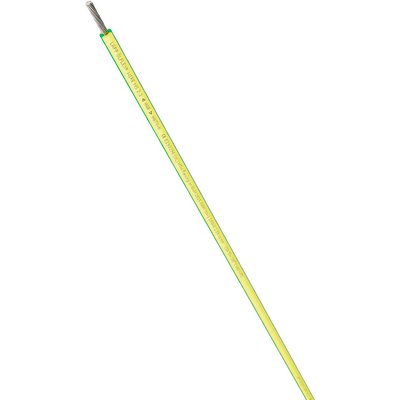

xThis single-core cable is suitable for internal and field wiring, offering flame-retardant and oil-resistant properties. It operates at 600V and is compliant with multiple standards for use in North America and Europe. It is designed for use in control cabinets and factory automation.
Specifications
x| Compliance / Certifications | CSA AWM I A/B (by CSA acc. CSA standard CSA C22.2 No. 210-05, CSA class 5851-01) / H05V-K acc. EN 50525-2-31 / UL AWM styles 1007 & 1569 (by UL acc. UL standard UL 758, U.I. Lapp GmbH's UL AWM file number: E63634) |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 / UL VW1/CSA FT1 |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Bending Radius | OD ≤ 8 mm: 4 x OD*/2 x OD**; 8 < OD ≤ 12 mm: 5 x OD*/3 x OD**; OD > 12 mm: 6 x OD*/4 x OD** |
| Drum Length / Coil Length | 100 m / ring |
| Diameter: External conduit size (mm) | 2.7mm |
| Weight | 11000g |
| Colour | Dark Blue (Core Colour) |
Documents
