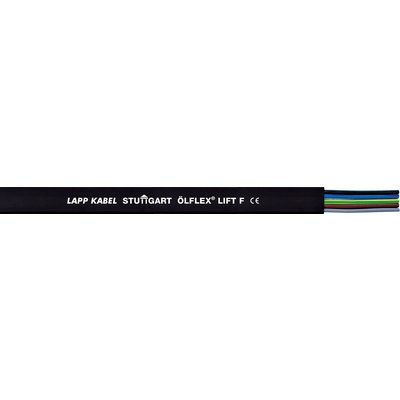

Lapp Ölflex Lift F PVC Control cable, 450/750V, 4Gx1.5mm² Part number 00420013

This is a PVC-insulated control cable with a 4Gx1.5mm² conductor configuration, rated at 450/750V, intended for use in lift and elevator installations. The inner conductors are fine-wire tinned-copper strands, allowing flexible use with a bending radius of 10 times the cable thickness. It is flame-retardant in accordance with IEC 60332-1-2 and complies with EN 50214/VDE 0283-2, with an operating temperature range of -15°C to 70°C for cross-sections from 1.5mm² upward.

Key specifications

• Operating temperature: -15°C to 70°C (as from 1.5 mm²)
• Insulation: PVC
• Conductor: Fine wire strand made of tinned-copper wires
• Bending radius: Flexible use: 10 x cable thickness
• Flammability: Flame-retardant acc. to IEC 60332-1-2
