Description

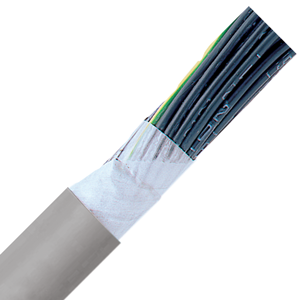

xThis ÖLFLEX® CLASSIC FD 810 cable is a flexible control cable designed for continuous flex applications. It provides excellent resistance to oils, coolants, and mechanical stress, making it suitable for cable tracks, gantry robots, and machine tools.
Specifications
x| Compliance / Certifications | Core and outer sheath based on VDE 0245/0285 For use in power chains / Please comply with assembly guideline |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -0°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Flexing: up from 7.5 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 10.9mm |
| Weight | 189000g |
| Test Voltage | 4000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
