Description

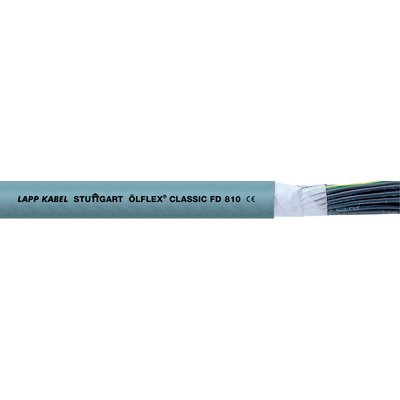

xThe control cable is designed for flexible use in power chains and offers flame-retardant capabilities. Its construction includes extra-fine copper wire with PVC insulation and sheath, suitable for use in machine parts that require frequent movement. The cable performs reliably in damp interiors and in measuring, control, and regulating circuits across various machines.
Specifications
x| Compliance / Certifications | Core and outer sheath based on VDE 0245/0285 For use in power chains / Please comply with assembly guideline |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -0°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Flexing: up from 7.5 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 13.1mm |
| Weight | 325000g |
| Test Voltage | 4000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
