Description

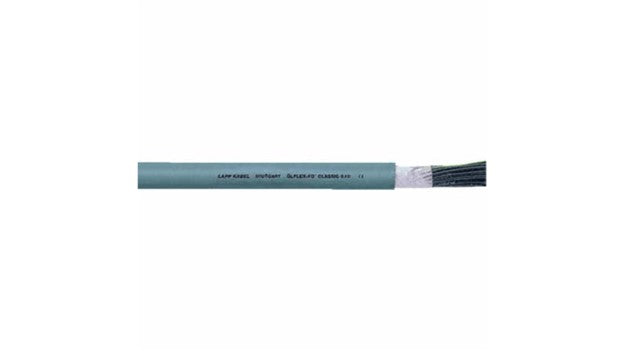

xThis is a highly flexible control cable optimized for power chain applications and moving machine parts. Featuring PVC core insulation and sheath, it is flame-retardant and well-suited for wet or damp interiors. It operates at a nominal voltage of 300/500V and is ideal for use in measuring, control, and regulating circuits, particularly in production and assembly lines in various machines.
Specifications
x| Compliance / Certifications | Core and outer sheath based on VDE 0245/0285 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. IEC 60332-1-2 |
| Material: Inner Conductor / Core | Extra-fine wire strand - bare copper wires (class 6) |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Flexing: up from 7.5 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 9.1mm |
| Weight | 139 kg / km |
| Test Voltage | 4000 V |
| Voltage Range/Rating | 300/500 V |
| Colour | Grey |
