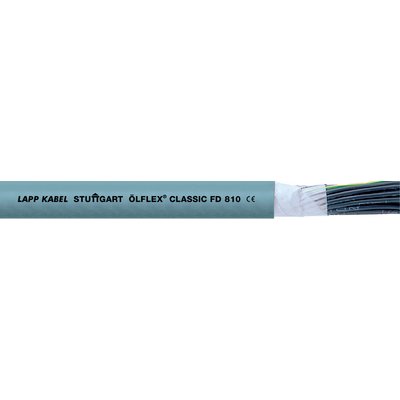

Lapp Ölflex Classic FD 810 Power/control cable, 50G x 0.5mm²
Lapp Ölflex Classic FD 810 Power/control cable, 50G x 0.5mm²

Lapp Ölflex Classic FD 810 Power/control cable, 50G x 0.5mm²

This flexible control cable with PVC insulation and sheath is designed for power chain applications, providing good flame resistance and low particle emission. It is ideal for measuring, control, and regulating circuits in assembly lines and production machines.
Vendor: Lapp Kabel
SKU: 0026110
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 60 left in stock
Description
Description
x
This flexible control cable with PVC insulation and sheath is designed for power chain applications, providing good flame resistance and low particle emission. It is ideal for measuring, control, and regulating circuits in assembly lines and production machines.
Specifications
Specifications
x
Compliance / CertificationsCore and outer sheath based on VDE 0245/0285 / For use in power chains: Please comply with assembly guideline
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusFlexing: up from 7.5 x outer diameter Fixed installation: 4 x outer diameter
Diameter: External conduit size (mm)18.5mm
Weight 515000g
Test Voltage4000 V
ColourGrey
RAL CodeRAL 7001
Documents
Documents
x
Download Datasheet
