Description

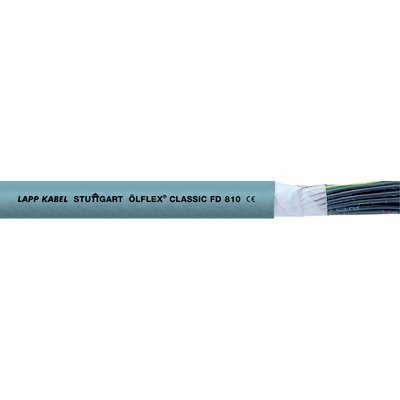

xThis control cable offers reliable performance for medium to high travel applications within power chains. Its robust PVC core insulation and sheath are paired with extra-fine copper wire stranding to enhance durability and flexibility. Ideal for indoor environments that may be damp or exposed to moderate UV, it serves in control and regulating circuits in assembly lines and various industrial machines.
Specifications
x| Compliance / Certifications | Core and outer sheath based on VDE 0245/0285 For use in power chains / Please comply with assembly guideline |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -0°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Flexing: up from 7.5 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 7.4mm |
| Weight | 93000g |
| Test Voltage | 4000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
