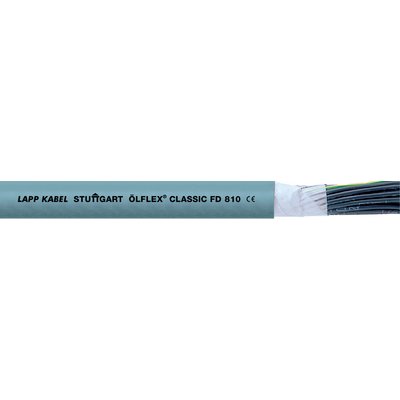

This highly flexible control cable is designed for medium to increased travel lengths or acceleration in power chains. It features a PVC core insulation and sheath, with extra-fine copper wire strands for enhanced flexibility. The cable is suitable for use in damp or wet interiors, various machines, and production lines. With flame-retardant properties per IEC 60332-1-2 and a low-adhesive surface, it is reliable for measuring, control, and regulating circuits in moving machine parts.
| Compliance / Certifications | Core and outer sheath based on VDE 0245/0285 For use in power chains / Please comply with assembly guideline |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -0°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Flexing: up from 7.5 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 6.1mm |
| Weight | 58000g |
| Test Voltage | 4000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
