Description

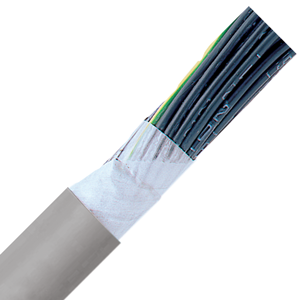

xThis ÖLFLEX® CLASSIC FD 810 continuous flex control cable is designed for high flexing applications. It provides resistance to mineral oils and coolants, suitable for cable tracks and automated systems in industrial environments.
Specifications
x| Compliance / Certifications | CE & RoHS based on VDE 0245/0281 |
| Country of Origin | Germany |
| Temperature: Operating | 0°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC / Dry llubricant / TPE |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | - for continuous flexing: 7.5 x cable diameter |
| Diameter: External conduit size (mm) | 18.6mm |
| Weight | 597,600 kg/km |
| Test Voltage | 4000 V |
