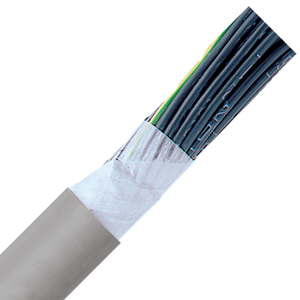

Lapp Ölflex Classic FD 810 Control cable, grey, 5G 2.5mm²
Lapp Ölflex Classic FD 810 Control cable, grey, 5G 2.5mm²

Lapp Ölflex Classic FD 810 Control cable, grey, 5G 2.5mm² Part number 0026172

This ÖLFLEX® CLASSIC FD 810 continuous flex cable is designed for power chains and robotic applications, providing oil resistance and flexibility, suitable for automated systems in industrial environments.
Vendor: Lapp Kabel
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Description
Description
x
This ÖLFLEX® CLASSIC FD 810 continuous flex cable is designed for power chains and robotic applications, providing oil resistance and flexibility, suitable for automated systems in industrial environments.
Specifications
Specifications
x
Compliance / CertificationsCE & RoHS based on VDE 0245/0281
Country of OriginGermany
Temperature: Operating0°C to 70°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathDry lubricant / PVC
Material: Jacket / Outer SheathPVC
Bending Radius- for continuous flexing: 7.5 x cable diameter
Diameter: External conduit size (mm)11.2mm
Weight 217,400 kg/km
Test Voltage4000 V
ColourGrey
Documents
Documents
x
Download Datasheet
