Description

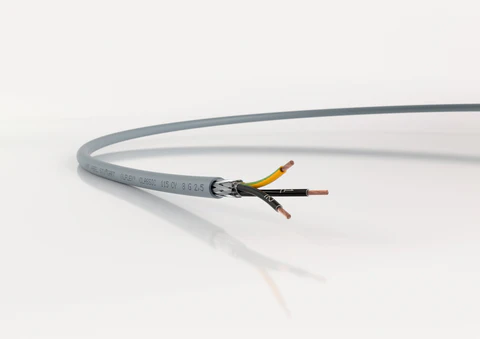

xThis ÖLFLEX® CLASSIC 115 CY cable is a flexible, screened PVC control cable designed for EMC-sensitive environments. It is ideal for compact installations, with a small diameter that supports space-saving configurations. The cable is flame-retardant and provides excellent chemical resistance, suitable for industrial machinery and data processing equipment.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-51 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 7.5mm |
| Weight | 105000g |
| Test Voltage | Core/core: 4000 V / Core/screen: 2000 V |
