Description

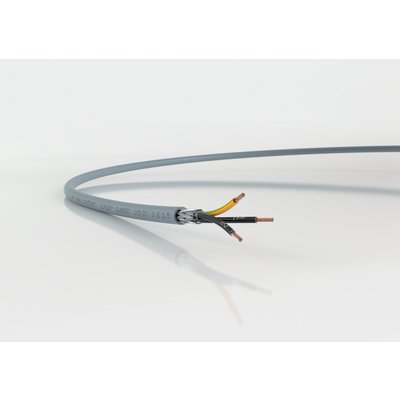

xThis flexible, screened control cable is designed for use in demanding industrial environments, providing excellent electromagnetic compatibility (EMC). It features a PVC outer sheath and tinned copper braiding, offering resistance to chemical substances and mechanical stress. Suitable for use in machinery, production lines, and areas requiring torsional movements, such as wind turbines.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-51 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 17.2mm |
| Weight | 680000g |
| Test Voltage | Core/core: 4000 V / Core/screen: 2000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
