Description

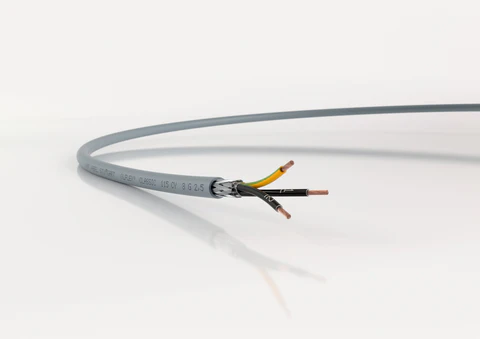

xThis ÖLFLEX® CLASSIC 115 CY cable offers flexibility, screening, and chemical resistance, suitable for use in plant engineering and industrial machinery. Its thin, light construction without an inner sheath allows for space-saving installations.
Specifications
x| Compliance / Certifications | EN 50525-2-51 |
| Country of Origin | Germany |
| Flammability | IEC 60332-1-2 |
| Temperature: Operating | -5°C to +70°C |
| Material: Inner Conductor / Core | Fine copper wire strands |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 8.2mm |
| Weight | 135000g |
| Test Voltage | Core/core: 4000 V / Core/screen: 2000 V |
| Voltage Range/Rating | 300/500 V |
