Description

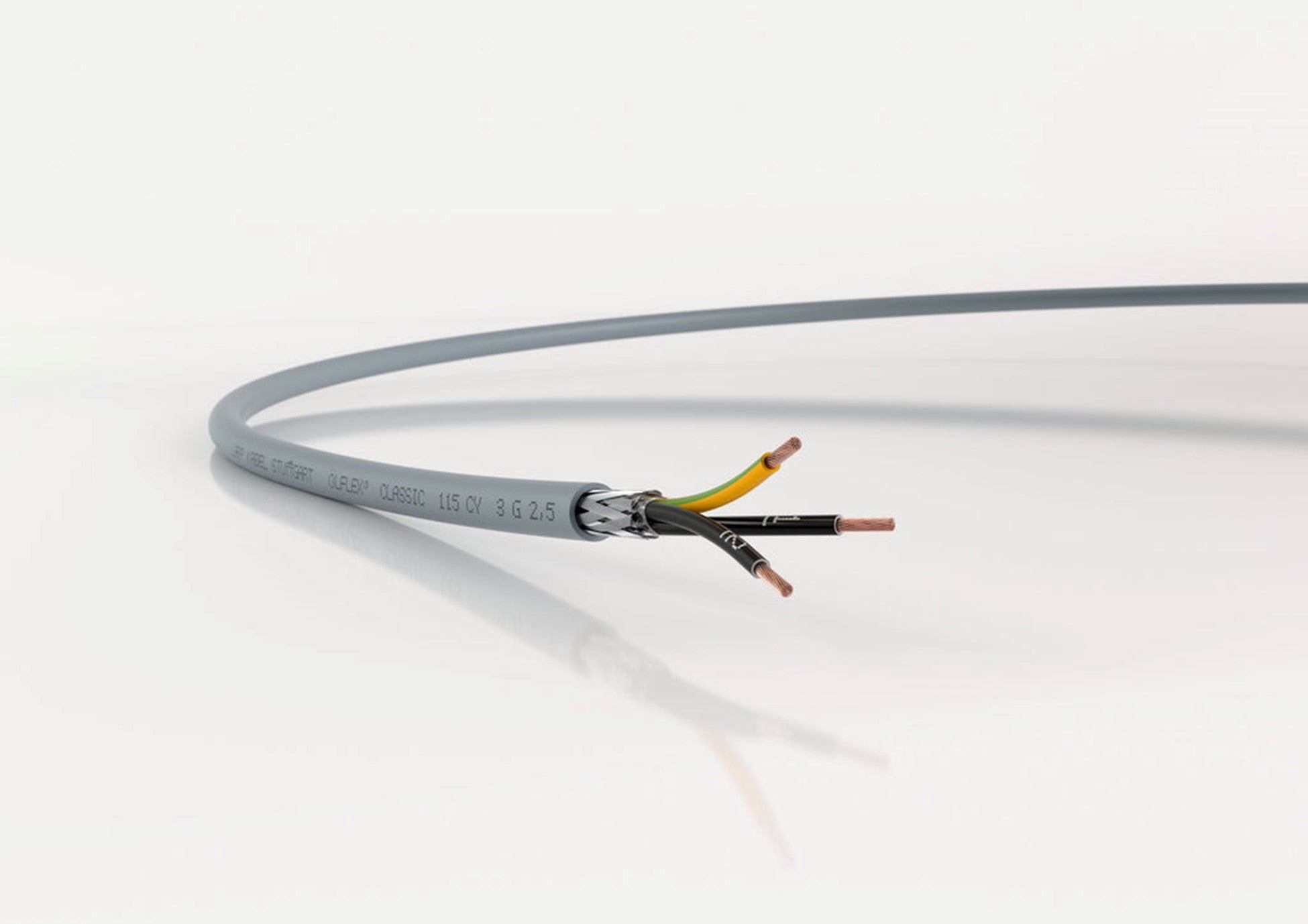

xThis screened, flexible control cable is well-suited for measurement and control applications in compact installations. It provides high flame retardance and chemical resistance, making it ideal for industrial systems requiring electromagnetic compatibility.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-51 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 7mm |
| Weight | 70000g |
| Test Voltage | Core/core: 4000 V / Core/screen: 2000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
