Lapp Ölflex Classic 115 CY PVC Control cable, 4G 0.5mm²
Lapp Ölflex Classic 115 CY PVC Control cable, 4G 0.5mm²

Lapp Ölflex Classic 115 CY PVC Control cable, 4G 0.5mm²

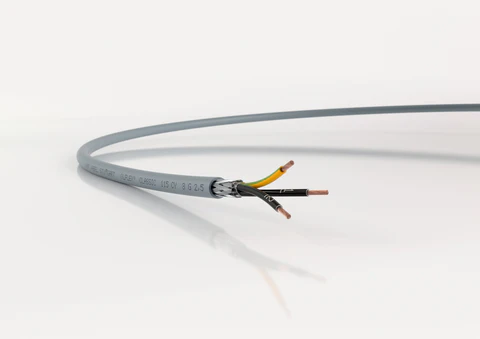

This ÖLFLEX® CLASSIC 115 CY is a screened and flexible PVC control cable designed for industrial machinery and control technology applications. It is optimized for space-saving installations with a high degree of screening and chemical resistance, making it ideal for environments with electromagnetic interference.
Vendor: Lapp Kabel
SKU: 1136004
Availability: Out Of Stock
Product type: Cable & Cable Management
Please hurry! Only 0 left in stock
Ask an expert
Description
Description
x
This ÖLFLEX® CLASSIC 115 CY is a screened and flexible PVC control cable designed for industrial machinery and control technology applications. It is optimized for space-saving installations with a high degree of screening and chemical resistance, making it ideal for environments with electromagnetic interference.
Specifications
Specifications
x
Country of OriginGermany
Flammability IEC 60332-1-2
Temperature: Operating-5°C to +70°C
Material: Inner Conductor / CoreFine copper wire strands
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter
Diameter: External conduit size (mm)6.5mm
Weight 71000g
Test VoltageCore/core: 4000 V / Core/screen: 2000 V
Voltage Range/Rating300/500 V
Documents
Documents
x
Download Datasheet
