Description

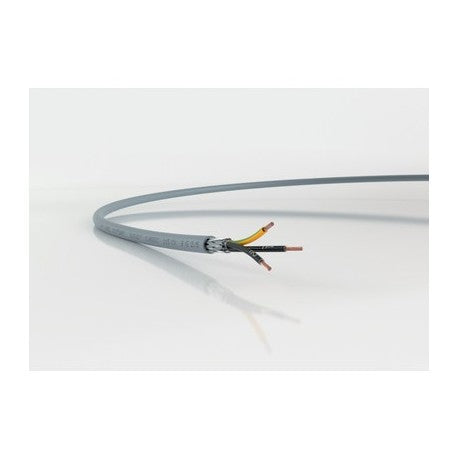

xThis screened, flexible control cable is ideal for space-saving installations in industrial settings. It is designed for measurement and control applications, particularly in environments sensitive to electromagnetic interference. The cable's high flame-retardant and chemical-resistant properties make it suitable for dynamic and torsional applications, such as in wind turbines.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-51 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 13.4mm |
| Weight | 350000g |
| Test Voltage | Core/core: 4000 V / Core/screen: 2000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
