Description

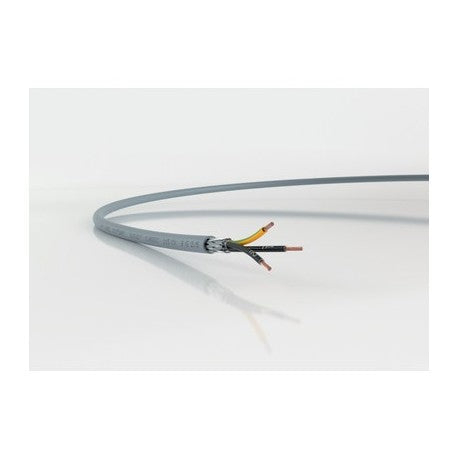

xThis compact, screened control cable is ideal for measurement and control applications in space-limited areas. It provides electromagnetic compatibility for industrial machinery and HVAC systems, and its high flame resistance and chemical durability make it suitable for use in torsional setups, such as in wind turbines.
Specifications
x| Compliance / Certifications | Based on EN 50525-2-51 |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. to IEC 60332-1-2 |
| Temperature: Operating | -5°C to 70°C |
| Material: Inner Conductor / Core | Fine wire strand made of tinned-copper wires |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter |
| Diameter: External conduit size (mm) | 16mm |
| Weight | 540000g |
| Test Voltage | Core/core: 4000 V / Core/screen: 2000 V |
| Colour | Grey |
| RAL Code | RAL 7001 |
