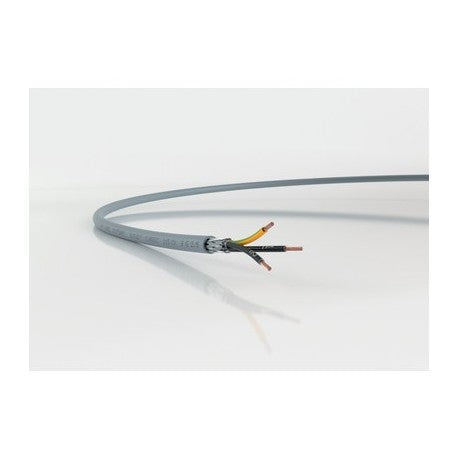

Lapp Ölflex Classic 115 CY PVC Control cable, 12G 0.5mm²
Lapp Ölflex Classic 115 CY PVC Control cable, 12G 0.5mm²

Lapp Ölflex Classic 115 CY PVC Control cable, 12G 0.5mm²

This screened, flexible control cable with a small diameter is optimized for space-saving installations. It is designed for measurement and control technology applications, including industrial machinery and EMC-sensitive environments. With flame-retardant properties and chemical resistance, it is suitable for torsional applications, such as in wind turbine generators.
Vendor: Lapp Kabel
SKU: 1136012
Availability: In stock
Product type: Cable & Cable Management
Please hurry! Only 122 left in stock
Description
Description
x
This screened, flexible control cable with a small diameter is optimized for space-saving installations. It is designed for measurement and control technology applications, including industrial machinery and EMC-sensitive environments. With flame-retardant properties and chemical resistance, it is suitable for torsional applications, such as in wind turbine generators.
Specifications
Specifications
x
Compliance / CertificationsBased on EN 50525-2-51
Country of OriginGermany
FlammabilityFlame-retardant acc. to IEC 60332-1-2
Temperature: Operating-5°C to 70°C
Material: Inner Conductor / CoreFine wire strand made of tinned-copper wires
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending RadiusOccasional flexing: 20 x outer diameter Fixed installation: 6 x outer diameter
Diameter: External conduit size (mm)9.9mm
Weight 200000g
Test VoltageCore/core: 4000 V / Core/screen: 2000 V
ColourGrey
RAL CodeRAL 7001
Documents
Documents
x
Download Datasheet
