Grey Flex Numbered 4G35

Product Details

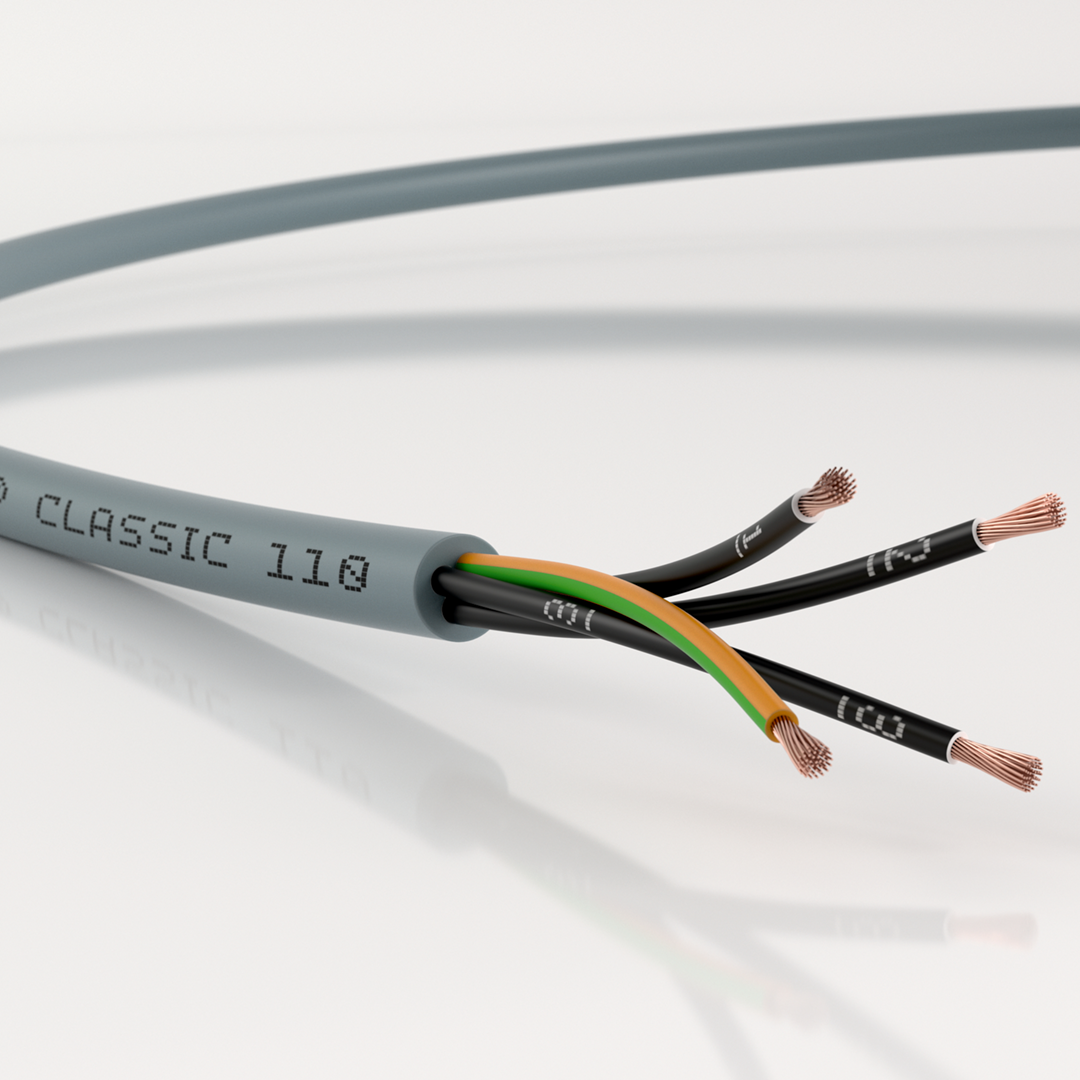

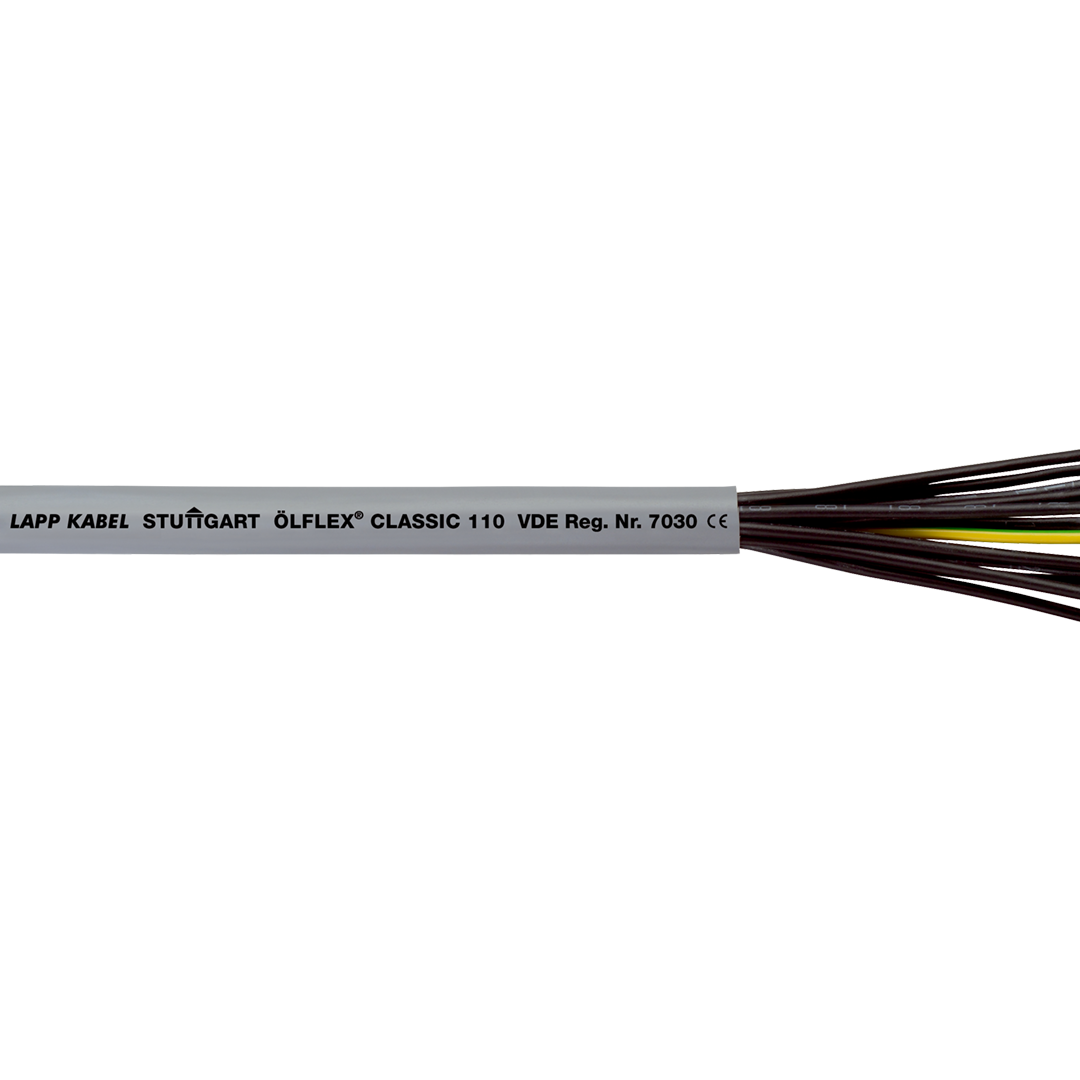

ÖLFLEX® CLASSIC 110, PVC sheath, numbered cores, VDE-registered 4G35 (3 + E)

Manufacturer part number: 1119644

Overview

Our most popular control cable. The ÖLFLEX® 110 is suitable for fixed and limited flexing installations. The ÖLFLEX® 110 has a special PVC sheath which is resistant to many oils and chemicals, making this cable suitable for most industrial installations.

Dragchain Use

• ÖLFLEX® 110 is now rated for use in dragchains
• For travel distances up to 5m
• Rated for 200,000 to 1 million bending cycles
• For 0.5mm to 2.5mm, 2 to 7 conductors

Voltage Rating

300/500V

Temperature Range

• Occasional flexing: -15°C to 70°C
• In power chains: -5°C to 70°C
• Fixed installation: -40°C to 80°C

Benefits

• Wide choice of standardized lengths and individual cuts
• Very broad range, items with up to 100 conductors

Application Range

• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• Dry or damp rooms that are subject to medium mechanical loads
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
• In power chains for a travelling distance up to 5 m and 0.2 ... 1 million bending cycles, for following dimensions: 0.5 to 2.5mm² and 2 to 7 conductors

Product Features

• Flame-retardant according to IEC 60332-1-2
• Good chemical resistance
• Oil-resistant according to DIN EN 50290-2-22 (TM54)

Norm References / Approvals

VDE reg. no. 7030 for the following sizes:

• up to 2.5 mm²: 2 - 65 cores
• from 4 mm²: 2 - 7 cores
• from 25 mm²: 2 - 5 cores

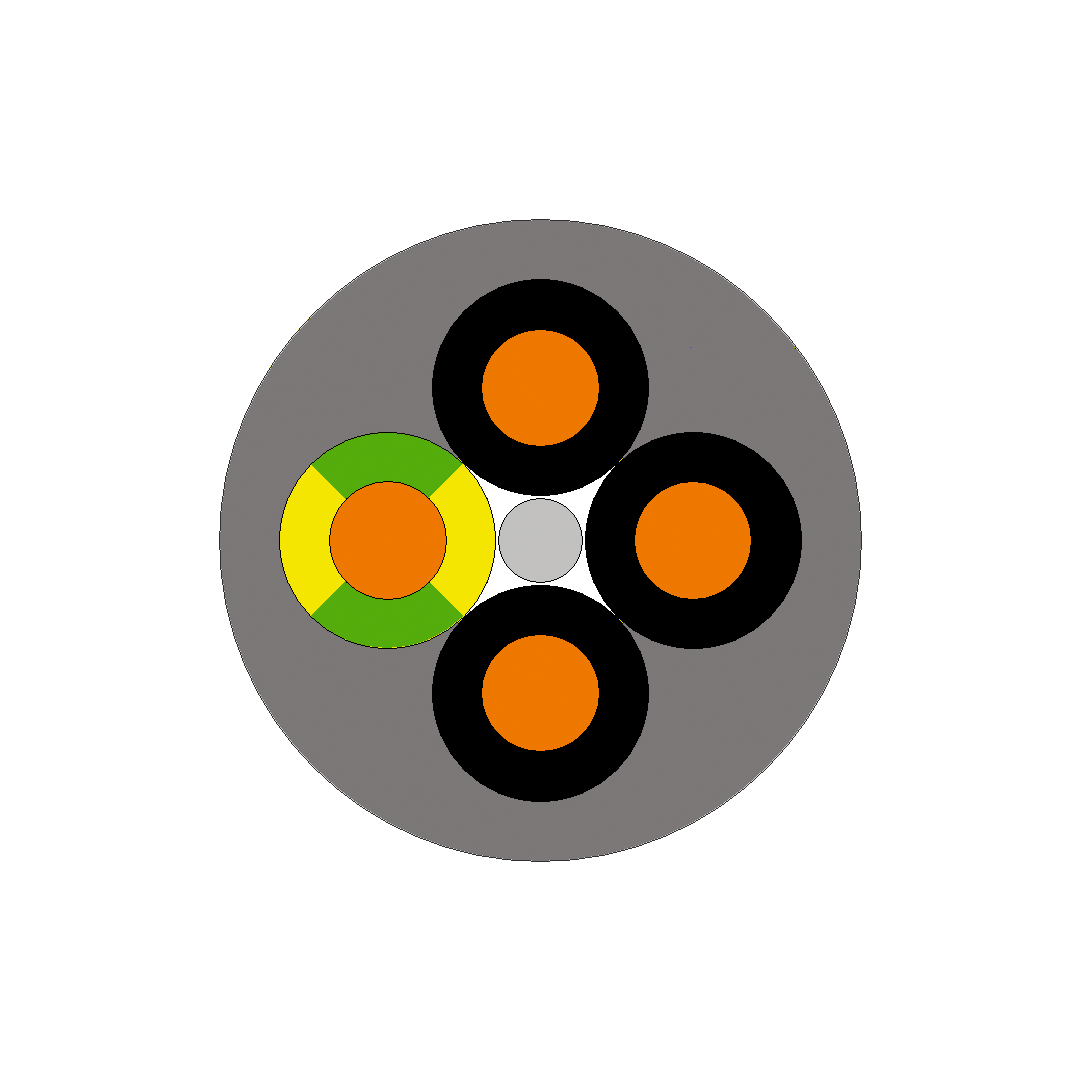

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• Cores twisted in layers
• PVC outer sheath, grey (similar RAL 7001)
