Description

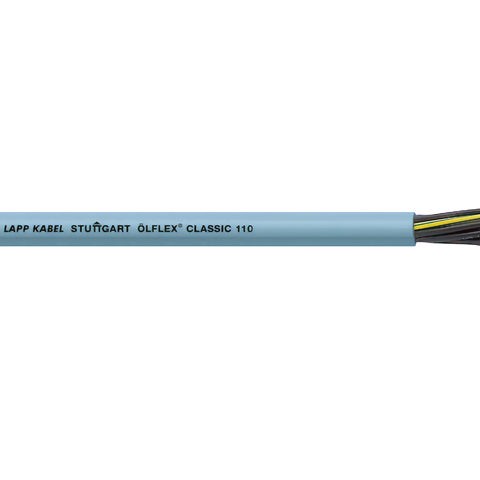

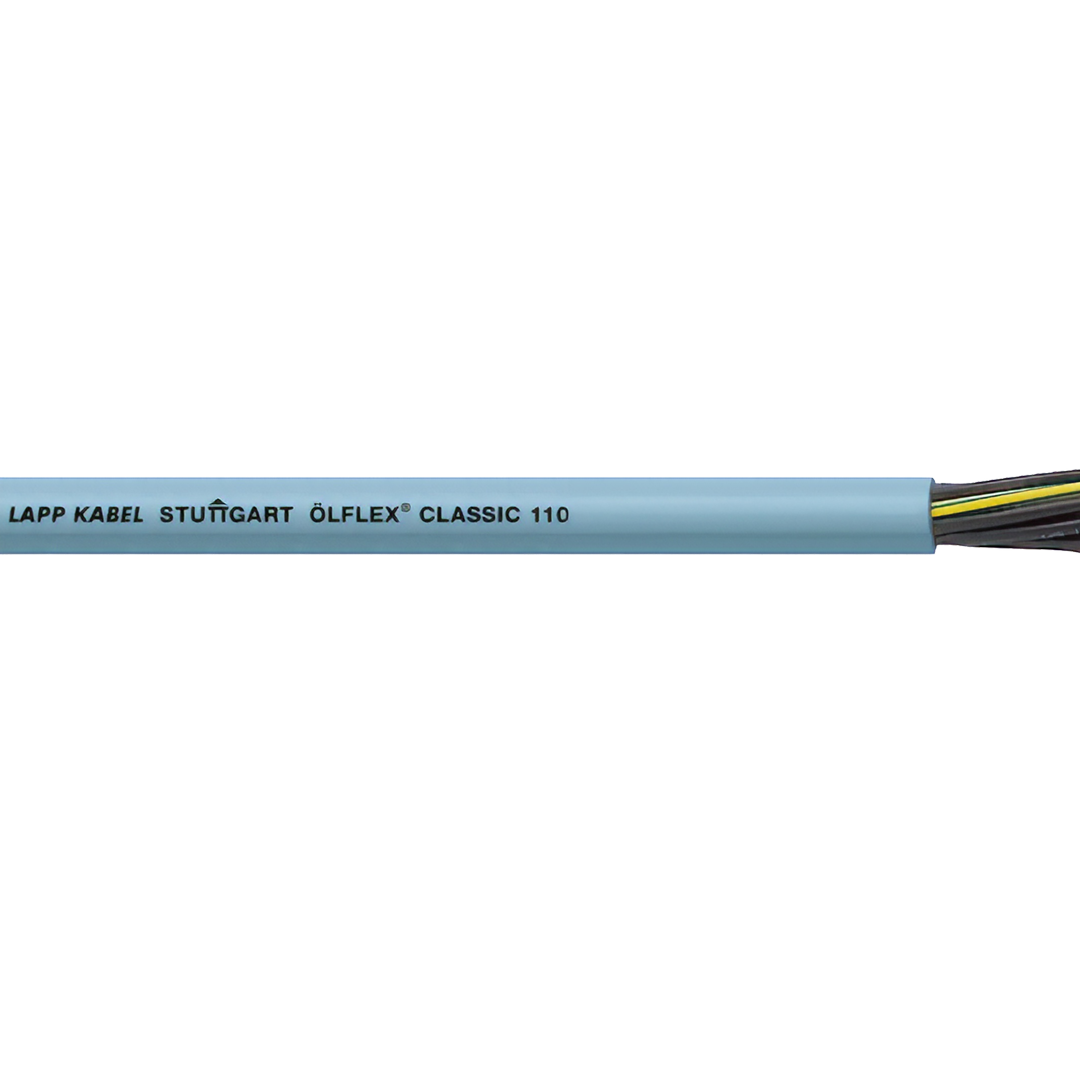

xThis control cable is oil-resistant, flame-retardant, and torsion-resistant, with a diameter of 8.9 mm. It operates at 300/500V and can handle temperatures between -40°C and +80°C (fixed installation). Suitable for demanding industrial applications like wind turbines and machinery. Available in lengths of up to 500 meters.
Specifications
x| Compliance / Certifications | VDE reg. no. 7030 for the following sizes: up to 2.5 mm²: 2 - 65 cores from 4 mm²: 2 - 7 cores from 25 mm²: 2 - 5 cores |
| Country of Origin | Germany |
| Flammability | Flame-retardant acc. IEC 60332-1-2 |
| Material: Inner Conductor / Core | Fine wire strands of bare copper |
| Material: Insulation / Inner sheath | PVC |
| Material: Jacket / Outer Sheath | PVC |
| Bending Radius | Occasional flexing: 10 x outer diameter In power chains: 15 x outer diameter Fixed installation: 4 x outer diameter |
| Diameter: External conduit size (mm) | 6.5mm |
| Weight | 79 kg / km |
| Test Voltage | 4000 V |
| Voltage Range/Rating | 300/500 V |
| Colour | Grey |
